Which VW part numbers are on the wheel arch widening widened sill panels gli gt gtd gti diagram for the Mk3 Golf?

This diagram lists 60 OEM part numbers for the Mk3 Golf. The first three are 1H4 853 805 6 DA, 1H4 854 808 A 0 1C and 1H0 853 717 A B 41.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Wheel arch widening widened sill panels gli gt gtd gti — Mk3 Golf Front Body (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Molding - roof. Protective strips

Generation: Mk3 1997 (RDW) Group: Front body Parts: 61 Primary OEM: 1H4 853 805 6 DA, 1H4 854 808 A 0 1C, 1H0 853 717 A B 41

Wheel arch widening widened sill panels gli gt gtd gti for the Volkswagen Golf Mk3 (1997): factory exploded diagram 853060 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 60 OEM part numbers across 61 catalogued positions including 1H4 853 805 6 DA, 1H4 854 808 A 0 1C and 1H0 853 717 A B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 60 OEM part numbers across 61 numbered positions.

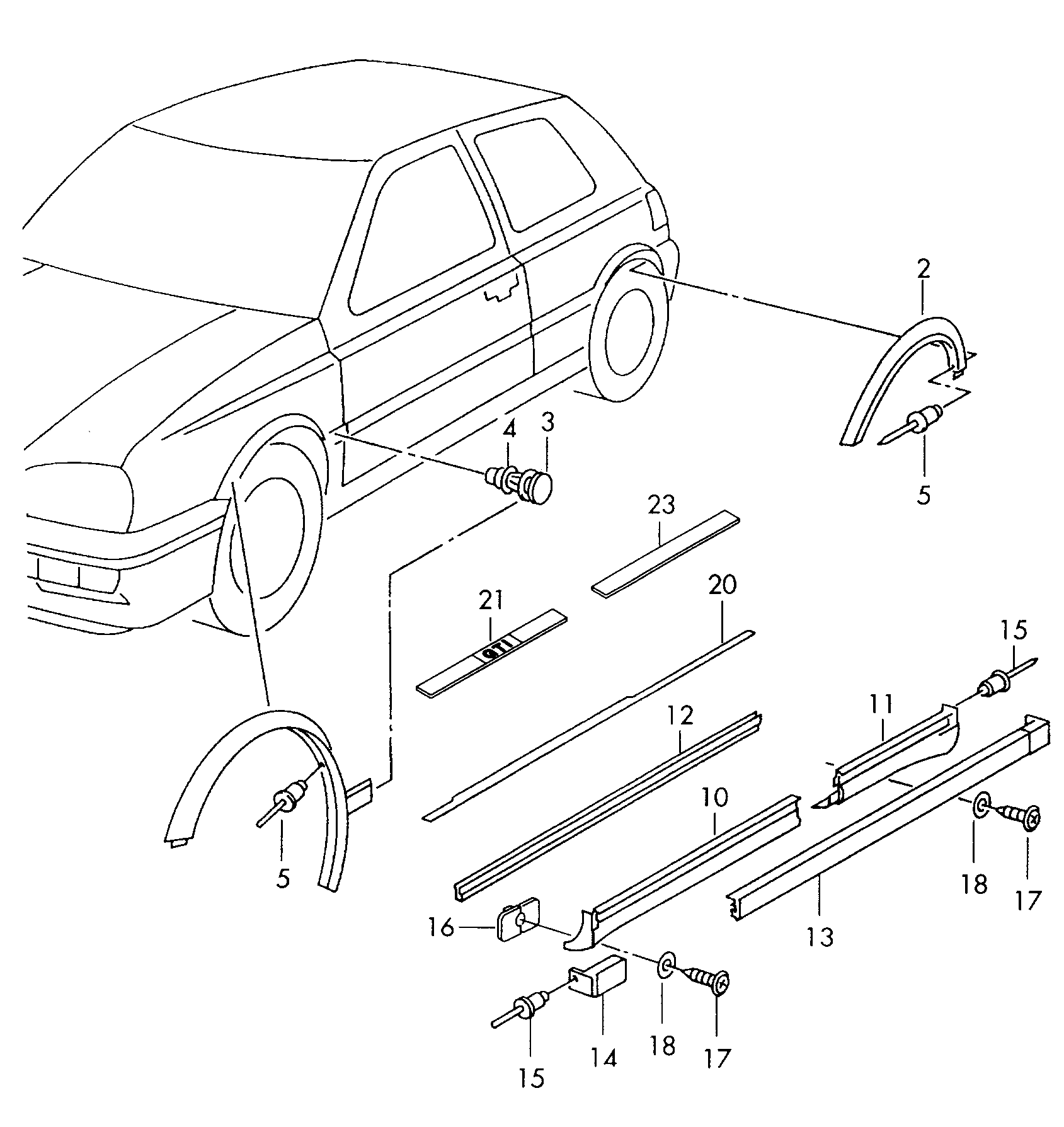

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H4 853 805 6 DA
	Satin black	1H4 854 808 A 0 1C
	Satin black	1H0 853 717 A B 41
	Satin black	1H0 853 996 B 41
	Satin black	1H0 853 718 A B 41
	Satin black	1H4 854 808 0 1C
	Satin black	1H0 853 817 B B 41
	Satin black	1H4 854 807 A 0 1C
	Satin black	1H0 853 818 B B 41
	Satin black	1H4 854 807 0 1C
	Satin black	1H4 853 806 D 0 1C
	Satin black	1H4 853 806 B 0 1C
	Satin black	1H3 853 806 C 0 1C
	Satin black	1H0 853 853 B 41
	Wheel-arch widening Widened sill panels GLI,GT,GTD,GTI	—
	Satin black	1H0 853 854 B 41
	Satin black	1H3 853 806 A 0 1C
	Satin black	1H0 853 899 B 41
	Satin black	1H4 853 805 D 0 1C
	Satin black	1H0 853 900 B 41
	Satin black	1H4 853 805 B 0 1C
	Satin black	1H3 853 805 C 0 1C
	Satin black	1H0 853 985 B 41
	Satin black	1H3 853 805 A 0 1C
	Satin black	1H0 853 986 B 41
	Satin black	1H4 853 806 6 DA
	Satin black	1H0 853 995 B 41
(1)	trim for wheel arch	1H0 853 718 A
(10)	Widened sill panels	1H0 853 854
(11)	Widened sill panels	1H0 853 900
(13)	Cover trim	1H0 853 986
(14)	Cover trim	1H0 853 996
(2)	trim for wheel arch	1H0 853 818 B
(20)	protect. foil for side member	1H4 853 806
(20)	protect. foil for side member	1H4 853 805
(21)	protect. foil for side member VR 6 HIGHLINE	1H3 853 805 A
(21)	protect. foil for side member VR 6	1H4 853 806 B
(21)	protect. foil for side member PR:E 2 U,E 4 T	1H3 853 806 C
(21)	protect. foil for side member PR:E 2 U,E 4 T	1H4 853 805 D
(21)	protect. foil for side member VR 6	1H3 853 806 A
(21)	protect. foil for side member PR:E 2 U,E 4 T	1H3 853 805 C
(21)	protect. foil for side member PR:E 2 U,E 4 T	1H4 853 806 D
(23)	protect. foil for side member VR 6	1H4 854 807
(23)	protect. foil for side member PR:E 2 U,E 4 T	1H4 854 808 A
(23)	protect. foil for side member VR 6	1H4 854 808
1	trim for wheel arch	1H0 853 717 A
10	Widened sill panels	1H0 853 853
11	Widened sill panels	1H0 853 899
12	retaining strip 1620 MM 1620 MM	1H0 853 941
13	Cover trim	1H0 853 985
14	Cover trim	1H0 853 995
15	Pop rivet 4 X 14 4 X 14	N 906 349 01
16	expanding nut	1H0 853 947
17	oval head panel screw 4,8 X 13 4,8 X 13	N 013 968 1
18	Washer 5,3 X 12 X 1 5,3 X 12 X 1	N 902 056 01
2	trim for wheel arch	1H0 853 817 B
21	protect. foil for side member VR 6	1H4 853 805 B
23	protect. foil for side member PR:E 2 U,E 4 T	1H4 854 807 A
3	Clip	191 853 585 A
4	Grommet	1H0 853 586
5	Pop rivet 4 X 14 4 X 14	N 906 349 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 25 Front body
Factory subgroup: 853060
