Which VW part numbers are on the wing wheel housing liner plastic front diagram for the Mk3 Golf?

This diagram lists 25 OEM part numbers for the Mk3 Golf. The first three are 161 867 299 0 1C, 1H0 853 169 B 41 and 1H0 898 051.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

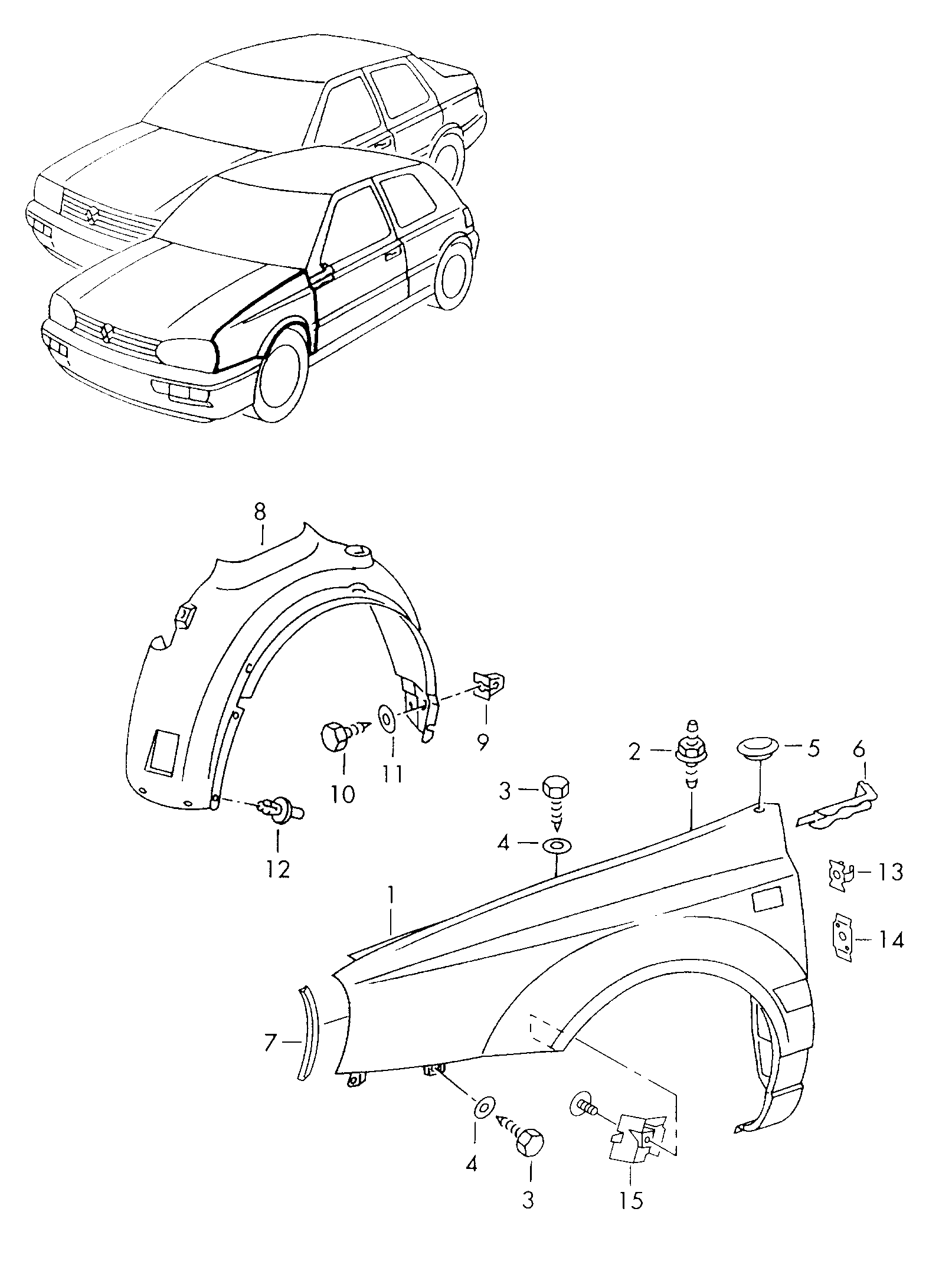

Wing wheel housing liner plastic front — Mk3 Golf Front Body (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wheel housing liner, plastic. Wing

Generation: Mk3 1997 (RDW) Group: Front body Parts: 25 Primary OEM: 161 867 299 0 1C, 1H0 853 169 B 41, 1H0 898 051

Wing wheel housing liner plastic front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 821010 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 25 OEM part numbers including 161 867 299 0 1C, 1H0 853 169 B 41 and 1H0 898 051. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 25 OEM part numbers across 25 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	161 867 299 0 1C
	Satin black	1H0 853 169 B 41
-	attachment parts for onefender	1H0 898 051
(1)	Wingwithout hole for aerial	1H0 821 105 C
(1)	Wing	1H0 821 106 B
(6)	Sealing stripa-pillar VR 6	1H0 837 738
(8)	Wheel housing liner, plastic	1H0 809 962
(8)	Wheel housing liner, plasticfor vehicles withvacuum reservoirmodify in workshop	1H0 809 961 A
1	Wingfor vehicles with Aerial	1H0 821 105 B
10	hexagon head panel screw 4,8 X 19 4,8 X 19	N 043 885 1
11	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 3
12	Clip 7,9 X 12 X 16 MM 7,9 X 12 X 16 MM	161 867 299
12	Spreader rivet A 8 X 11 X 12,5 MM A 8 X 11 X 12,5 MM	N 038 550 1
12	Spreader rivet 8 X 12 8 X 12	N 038 549 1
13	speed nut 6,3 6,3	N 103 055 02
13	speed nut B 6,3 B 6,3	N 103 055 01
14	press insert nut 6,5 6,5	171 805 445
2	double stud with hexagon drive ST 6,3 X 19/5 X 13,5 ST 6,3 X 19/5 X 13,5	N 905 361 01
3	hexagon head panel screw 6,5 X 19 6,5 X 19	N 015 946 1
4	Washer 7,4 X 22 X 2 7,4 X 22 X 2	N 011 667 2
4	Washer B 7,4 X 22 X 2 B 7,4 X 22 X 2	N 904 695 01
5	Cover 46,8 X 17 MM 46,8 X 17 MM	1H0 853 169
6	Sealing stripa-pillar VR 6	1H0 837 737
8	Wheel housing liner, plastic	1H0 809 961 A
9	insert nut	811 807 577 C

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 25 Front body
Factory subgroup: 821010

Related factory diagrams

Other published front body plates for the Mk3 Golf in this catalogue.

Bodywork front part 1993 - 1996 · subgroup 805000
Bumper rear 1993 - 1996 · subgroup 807050
Bumper front 1993 - 1996 · subgroup 807000
Sill trim strip radiator grilletrim licence 1993 - 1996 · subgroup 853030
Side part jetta 1993 - 1996 · subgroup 809050
Sectional parts side section jetta 1993 - 1996 · subgroup 809080
Body 1997 · subgroup 800000
Bodywork front part 1997 · subgroup 805000
