Differentialfinal drive oil coolerfor 4 speed automatic — Mk3 Golf Steering (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Oil cooler. final drive. Differential. for 4-speed automatic gearbox

Generation: Mk3 1993 - 1996 (MEX) Group: Steering Parts: 56 Primary OEM: 01M 409 285 A, 01M 409 117 A, 095 409 581 C

Differentialfinal drive oil coolerfor 4 speed automatic for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 409050 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 50 OEM part numbers across 56 catalogued positions including 01M 409 285 A, 01M 409 117 A and 095 409 581 C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 50 OEM part numbers across 56 numbered positions.

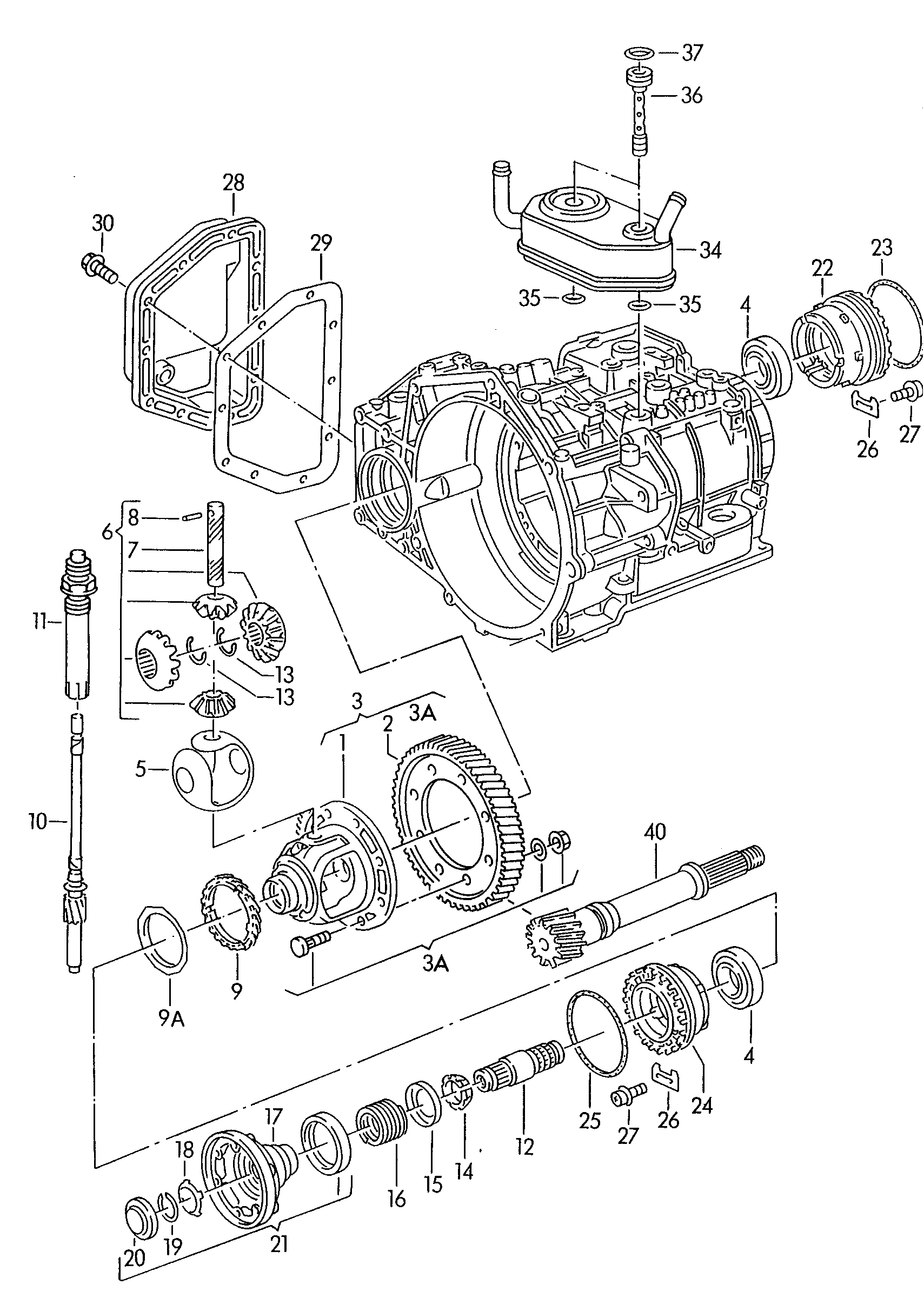

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Differentialfinal drive Oil coolerfor 4-speed automatic gearbox CFC,CFH,CFD,CFK,CFF,CNK,CLK,CLA,CLB,DKS,CKY
 —
(17)
Drive flange 122 MM CNK,CLK,CKZ,DKS
122 MM
 01M 409 285 A
(22)
Bearing housing
 01M 409 117 A
(28)
Cover
 095 409 581 C
(3)
Balancer housing withoutput gear Z=77 CFD,CFK,CKY
Z=77
 096 409 111 AL
(3)
Balancer housing withoutput gear also use: Z=74002 517 18501 M 409 117 A 01 M 409 285 A CLB,CFF
Z=74002 517 18501 M 409 117 A 01 M 409 285 A
 096 409 111 AH
(3)
Balancer housing withoutput gear G >> 21 08 5 Z=74 CLB
Z=74
 096 409 111 G
(3)
Balancer housing withoutput gear G 22 08 5>> Z=74 CLB
Z=74
 096 409 111 T
(3)
Balancer housing withoutput gear Z=72 CKZ
Z=72
 096 409 111 AK
(3)
Balancer housing withoutput gear also use: Z=76002 517 18501 M 409 117 A 01 M 409 285 A CLA,CLK,CFC,CFH,CNK,DKS
Z=76002 517 18501 M 409 117 A 01 M 409 285 A
 096 409 111 AF
(3)
Balancer housing withoutput gear G >> 21 08 5 Z=77 CFD,CFK
Z=77
 096 409 111 B
(3)
Balancer housing withoutput gear Z=77 CFD,CFK,CKY
Z=77
 096 409 111 R
(34)
Oil cooler
 096 409 061 E
10
speedometer pinion Z=13
Z=13
 095 409 197 A
11
Pinion bearing
 095 409 193 B
12
Output shaft
 020 409 291 B
13
Securing ring 22 X 2
22 X 2
 020 409 299
14
tapered ring
 020 409 374
15
thrust washer
 020 409 378
16
Pressure spring
 020 409 379 B
17
Drive flange 100 MM CFH,CFK,CFF,CFD,CLA,CLB,CKY
100 MM
 01M 409 285
17
Drive flange 100 MM
100 MM
 096 409 285 A
18
Belleville spring
 020 409 295
19
snap ring
 020 409 297
20
End cap
 020 409 289 B
21
repair kit forjoint flange ED=7,4
ED=7,4
 020 498 085 G
22
Bearing housing
 096 409 117 C
23
O-ring 98 X 3
98 X 3
 095 409 528
24
bearing ring also use: 01 M 409 285
01 M 409 285
 01M 409 253
24
bearing ring
 096 409 253 B
25
O-ring 92 X 3
92 X 3
 095 409 259
26
Retaining plate
 095 409 669 C
27
Hexagon bolt M 6 X 15
M 6 X 15
 N 904 407 01
28
Cover
 095 409 581 A
29
Seal
 095 409 597 A
30
Hex collared bolt M 8 X 16
M 8 X 16
 N 903 285 02
31
see illustration: 300-080
300-080
 —
32
see illustration: 300-080
300-080
 —
33
see illustration: 300-080
300-080
 —
35
O-ring 13 X 2,5
13 X 2,5
 089 409 069
36
Banjo bolt
 01M 409 066
36
Banjo bolt
 01M 409 067 C
37
O-ring 13 X 3,5
13 X 3,5
 096 409 069 A
3A
No longer available
 —
3A
1 set fixing parts foroutput wheel on differentialcasing
 096 498 088 A
4
Taper roller bearing 41 X 68 X 17,6
41 X 68 X 17,6
 113 517 185 C
40
see illustration: 323-070
323-070
 —
5
Thrust washer assembly
 02J 409 170
5
Thrust washer assembly
 02A 409 170
6
1 set: differential pinions
 096 498 081 C
6
1 set: differential pinions
 096 498 081 A
7
shaft - differential pinion
 095 409 177 A
8
Spring pin 5,4 X 28,5
5,4 X 28,5
 N 905 387 01
8
Spring pin 5 X 14
5 X 14
 N 043 302 1
9
Drive wheel speedometer Z=22
Z=22
 095 409 187 B
9A
Tappet bushing
 095 409 190

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these steering diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1993 - 1996
Generation region
MEX
Generation code
128
Factory group
30 Steering
Factory subgroup
409050
