Steering gear track rodfor models without power steering — Mk3 Golf Steering (1996)

Factory title: Volkswagen Golf (1996) - Track rod. Steering gear. for models without power steering

Generation: Mk3 1996 (RDW) Group: Steering Parts: 38 Primary OEM: 191 419 063 CX, 192 419 063 C, 1H2 419 523

Steering gear track rodfor models without power steering for the Volkswagen Golf Mk3 (1996): factory exploded diagram 419010 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 37 OEM part numbers across 38 catalogued positions including 191 419 063 CX, 192 419 063 C and 1H2 419 523. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 37 OEM part numbers across 38 numbered positions.

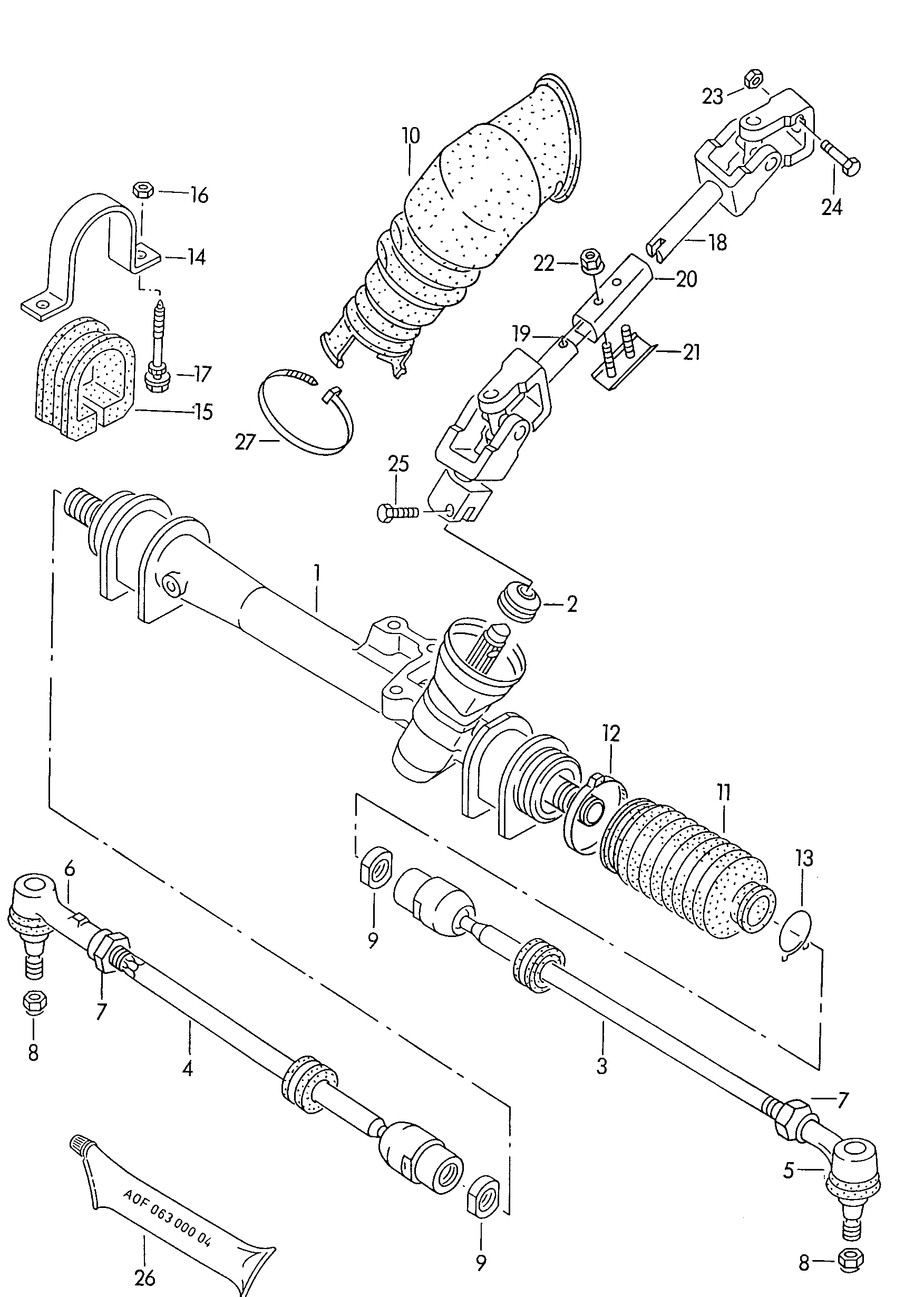

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Steering gear Track rodfor models withoutpower steering PR:1 N 0
 —
(1)
Steering gear
 191 419 063 CX
(1)
Steering gear
 192 419 063 C
(10)
Prot. sleeve for drive shaft
 1H2 419 523
(19)
Drive shaft
 1H2 419 952
(8)
hexagon nut, self-locking M 12
M 12
 N 906 350 01
1
Steering gear
 191 419 063 C
10
Prot. sleeve for drive shaft
 1H1 419 523
11
Prot. housing for steer. gear
 191 419 831
12
clamp 61,5 X 5 X 0,8
61,5 X 5 X 0,8
 N 903 550 01
13
Clamping ring
 171 419 838
14
Clamp
 191 419 875
15
Rubber bush
 191 419 883
16
Hexagon collar nutself-locking M 8
M 8
 N 902 264 04
16
Hexagon collar nutself-locking M 8
M 8
 N 902 264 03
17
Hex collared bolt M 8 X 75 X 33
M 8 X 75 X 33
 N 901 845 01
18
Drive shaft
 1H0 419 951
19
Drive shaft
 1H1 419 952
2
seal ring
 171 419 329 A
20
Connecting sleeve
 1H0 419 913
21
Connecting piece
 1H0 419 917
22
hexagon nut, self-locking M 8
M 8
 N 900 744 01
23
hexagon nut, self-locking M 8
M 8
 N 022 146 9
24
Hexagon bolt M 8 X 35 X 15
M 8 X 35 X 15
 N 010 335 12
25
Hexagon bolt M 8 X 28 X 15
M 8 X 28 X 15
 N 100 722 02
26
Steering gear grease 250 G
250 G
 AOF 063 000 04
26
Steering gear grease
 G 052 168 A1
27
Cable ties 3,6 X 140 MM
3,6 X 140 MM
 N 106 478 01
27
Cable ties 3,6 X 246
3,6 X 246
 N 020 902 2
3
tie rod (adjustable)
 1H0 419 803
4
tie rod (adjustable)
 1H0 419 804
5
tie rod end
 191 419 811
6
tie rod end
 191 419 812
7
Hexagon nut M 14
M 14
 N 102 187 08
7
Hexagon nut M 14
M 14
 N 011 113 5
8
hexagon nut, self-locking M 12
M 12
 N 909 429 02
8
hexagon nut, self-locking M 12
M 12
 N 903 213 01
9
Lock nut M 22
M 22
 171 419 855
