Which VW part numbers are on the steering wheel diagram for the Mk3 Golf?

This diagram lists 35 OEM part numbers for the Mk3 Golf. The first three are 1H0 419 091 AE0 1C, 1H0 419 091 AS0 1C and 1H0 419 677 0 1C.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Steering wheel — Mk3 Golf Steering (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Steering wheel

Generation: Mk3 1997 (RDW) Group: Steering Parts: 37 Primary OEM: 1H0 419 091 AE0 1C, 1H0 419 091 AS0 1C, 1H0 419 677 0 1C

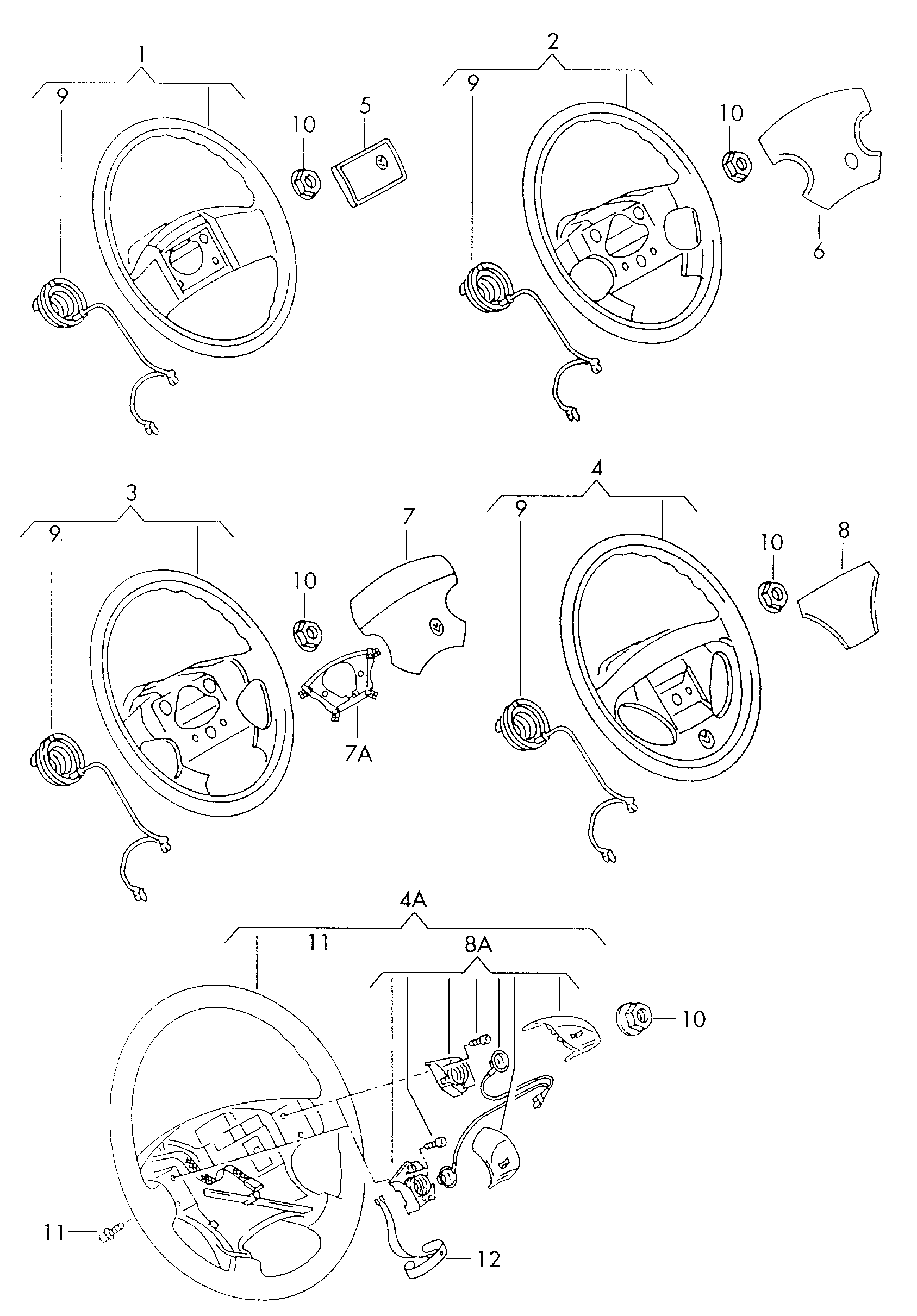

Steering wheel for the Volkswagen Golf Mk3 (1997): factory exploded diagram 419020 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 35 OEM part numbers across 37 catalogued positions including 1H0 419 091 AE0 1C, 1H0 419 091 AS0 1C and 1H0 419 677 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 35 OEM part numbers across 37 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H0 419 091 AE0 1C
	Satin black	1H0 419 091 AS0 1C
	Satin black for steering wheel: 1 H 0 419 091 AG 1 H 0 419 091 AJ 1 H 0 419 091 AG 1 H 0 419 091 AJ	1H0 419 677 0 1C
	Black	1H0 419 091 AF1 BX
	Satin black	1H0 419 091 AC0 1C
	black/red	1H0 419 091 AFE GR
	Black	1H0 419 091 AF1 BX
	Satin black	1H0 419 091 AQ0 1C
	Satin black	1H0 419 091 AG0 1C
	black/red COLOUR-CONCEPT;GTI-EDITION;BON JOVI	1H0 419 091 ADE GR
	black/blue COLOUR-CONCEPT	1H0 419 091 ADE GS
	black/yellow COLOUR-CONCEPT	1H0 419 091 ADE GT
	black/green COLOUR-CONCEPT	1H0 419 091 ADE GU
	Black	1H0 419 091 AD1 BX
	Satin black	3A0 419 097 A 94
	Satin black/flash red	1H0 419 091 AME QZ
	Black	1H0 419 091 AJ1 BX
(3)	steering wheel (leather)	1H0 419 091 AJ
(4A)	steering wheel (leather)for models with airbag MATCH	1H0 419 091 AM
(4A)	steering wheel (leather)for models with airbag	1H0 419 091 AD
(4A)	steering wheelfor models with airbag Automatic+TDI	1H0 419 091 AE
(4A)	steering wheelfor models with airbag Automatic+TDI	1H0 419 091 AS
(4A)	steering wheel (leather)for models with airbag Automatic+TDI	1H0 419 091 AF
(4A)	steering wheel (leather)for models with airbag Automatic+BON JOVI	1H0 419 091 AF
(7)	for models with airbag see illustration: 880-010 880-010	—
(9)	for models with airbag see illustration: 959-010 959-010	—
10	Hexagon collar nutself-locking M 16 X 1,5 M 16 X 1,5	N 905 500 02
10	Hexagon collar nutself-locking M 16 X 1,5 M 16 X 1,5	N 905 500 01
11	Socket head bolt withinner multipoint headfor models with airbag M 6 X 21,5 M 6 X 21,5	N 906 148 01
12	wiring harness for airbag-ledfor vehicles with retrofittedairbag Control lamp for airbag	1H0 971 673
3	steering wheel	1H0 419 091 AG
4A	steering wheelfor models with airbag	1H0 419 091 AQ
4A	steering wheelfor models with airbag	1H0 419 091 AC
7	horn button	1H0 419 677
7A	Support platehorn button	1H0 419 529
8A	1 set of horn buttonsfor models with airbag	3A0 419 097
9	return ring with slipring	1H0 419 660 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these steering diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 30 Steering
Factory subgroup: 419020

Related factory diagrams

Other published steering plates for the Mk3 Golf in this catalogue.

Differentialfinal drive oil coolerfor 4 speed automatic 1993 - 1996 · subgroup 409050
Hydraulic pumpoil container connection parts hosesfor power 1996 · subgroup 422047
Steering gear track rodfor models without power steering 1996 · subgroup 419010
Steering columnsteering tubesteering column tube 1997 · subgroup 419025
Steering columnsteering tubesteering column tube manually 1997 · subgroup 419035
Steering gear track rod lhd 1997 · subgroup 422042
Steering gear track rod 1997 · subgroup 422040
Oil container connection parts hosesfor power steering 1997 · subgroup 422045
