Steering gear track rod — Mk3 Golf Steering (1997)

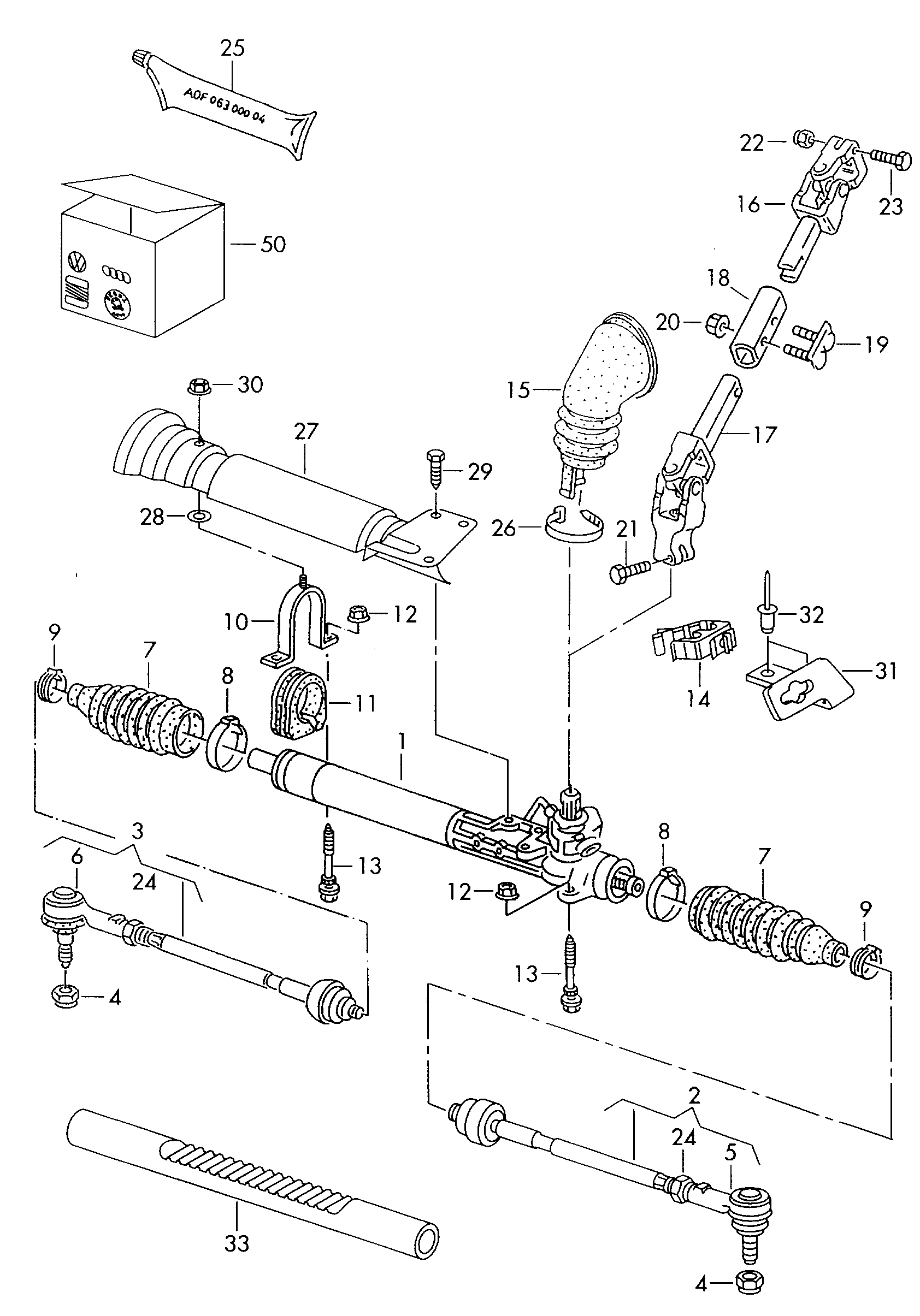

Factory title: Volkswagen Golf (1997 - 1998) - Track rod. Steering gear
Steering gear track rod for the Volkswagen Golf Mk3 (1997): factory exploded diagram 422040 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 65 OEM part numbers including 1H2 422 061, 1H2 422 061 X and 1H2 422 061 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 65 OEM part numbers across 65 numbered positions.
| № | Description | Part number |
|---|---|---|
| (1) | Steering gear | 1H2 422 061 |
| (1) | Steering gear | 1H2 422 061 X |
| (1) | Steering gear GTI,16 V,VR 6 | 1H2 422 061 A |
| (1) | Steering gear with mobilityassistance | 1H2 422 061 B |
| (1) | Steering gear with mobilityassistance | 1H2 422 061 BX |
| (1) | Steering gear GTI,16 V,VR 6 | 1H2 422 061 AX |
| (1) | Steering gear | 6K2 422 061 CX |
| (1) | Steering gear with mobilityassistance | 1H1 422 061 BX |
| (1) | Steering gear GTI,16 V,VR 6 | 1H1 422 061 AX |
| (1) | Steering gear | 6K1 422 061 A |
| (1) | Steering gear | 6K1 422 061 C |
| (1) | Steering gear GTI,16 V,VR 6 | 1H1 422 061 A |
| (1) | Steering gear with mobilityassistance | 1H1 422 061 B |
| (1) | Steering gear | 6K2 422 061 C |
| (15) | Prot. sleeve for drive shaft diesel eng. | 1H2 419 523 E |
| (15) | Prot. sleeve for drive shaft diesel eng. | 1H1 419 523 E |
| (15) | Prot. sleeve for drive shaft diesel eng. | 358 419 523 B |
| (15) | Prot. sleeve for drive shaft | 1HS 419 523 |
| (17) | Drive shaft | 1H2 419 952 B |
| (2) | Track rod GTI,16 V,VR 6 | 1H0 422 803 A |
| (3) | Track rod GTI,16 V,VR 6 | 1H0 422 804 A |
| (33) | Steering rod 548 MM 548 MM | 1H2 422 301 |
| (4) | hexagon nut, self-locking M 12 M 12 | N 906 350 01 |
| 1 | Steering gear | 1H1 422 061 X |
| 1 | Steering gear | 1H1 422 061 |
| 10 | Clamp | 1H0 422 875 |
| 10 | Clamp | 1H0 422 875 A |
| 11 | Rubber bush | 1H0 422 884 |
| 12 | Hexagon collar nutself-locking M 8 M 8 | N 902 264 04 |
| 12 | Hexagon collar nutself-locking M 8 M 8 | N 902 264 03 |
| 13 | Hex collared bolt M 8 X 75 X 33 M 8 X 75 X 33 | N 901 845 01 |
| 14 | Bracket | 1H0 422 941 |
| 15 | Prot. sleeve for drive shaft | 1H2 419 523 B |
| 15 | Prot. sleeve for drive shaft | 1H1 419 523 A |
| 16 | Drive shaft | 1H0 419 951 |
| 17 | Drive shaft | 1H1 419 952 B |
| 18 | Connecting sleeve | 1H0 419 913 |
| 19 | Connecting piece | 1H0 419 917 |
| 2 | Track rod | 1H0 422 803 |
| 20 | hexagon nut, self-locking M 8 M 8 | N 900 744 01 |
| 21 | Hexagon bolt M 8 X 28 X 15 M 8 X 28 X 15 | N 100 722 02 |
| 22 | hexagon nut, self-locking M 8 M 8 | N 022 146 9 |
| 23 | Hexagon bolt M 8 X 35 X 15 M 8 X 35 X 15 | N 010 335 12 |
| 24 | Hexagon nut M 14 M 14 | N 011 113 5 |
| 24 | Hexagon nut M 14 M 14 | N 102 187 08 |
| 25 | Steering gear grease | G 052 168 A1 |
| 25 | Steering gear grease 250 G 250 G | AOF 063 000 04 |
| 26 | Cable ties 3,6 X 246 3,6 X 246 | N 020 902 2 |
| 27 | Heat shield GTI,16 V,VR 6 | 1H1 422 701 B |
| 28 | Washer 6,5 6,5 | N 011 547 6 |
| 29 | Hex collared bolt M 8 X 16 M 8 X 16 | N 903 285 02 |
| 3 | Track rod | 1H0 422 804 |
| 30 | Hexagon nut M 6 M 6 | N 902 158 02 |
| 31 | Bracket | 1H0 422 173 |
| 32 | Pop rivet 4,8 X 10 4,8 X 10 | N 904 374 01 |
| 33 | Steering rod 548 MM 548 MM | 1H1 422 301 |
| 4 | hexagon nut, self-locking M 12 M 12 | N 903 213 01 |
| 4 | hexagon nut, self-locking M 12 M 12 | N 909 429 02 |
| 5 | tie rod end | 191 419 811 |
| 50 | Gasket set for assistedsteering | 1H0 498 020 |
| 6 | tie rod end | 191 419 812 |
| 7 | boot for tie rod | 1H0 422 831 B |
| 8 | Clamp | 357 422 837 A |
| 9 | Clamp | 1H0 422 839 |
| 9 | clamp 34,6 X 7 X 0,6 34,6 X 7 X 0,6 | N 102 077 01 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these steering diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Factory group
- 30 Steering
- Factory subgroup
- 422040
