Oil container connection parts hosesfor power steering — Mk3 Golf Steering (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Track rod. Steering gear

Generation: Mk3 1997 (RDW) Group: Steering Parts: 58 Primary OEM: 1J0 422 269 B, 1H0 422 162 A, N 101 552 07

Oil container connection parts hosesfor power steering for the Volkswagen Golf Mk3 (1997): factory exploded diagram 422045 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 56 OEM part numbers across 58 catalogued positions including 1J0 422 269 B, 1H0 422 162 A and N 101 552 07. Parts on this plate carry the engine codes AFT and AKS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 56 OEM part numbers across 58 numbered positions.

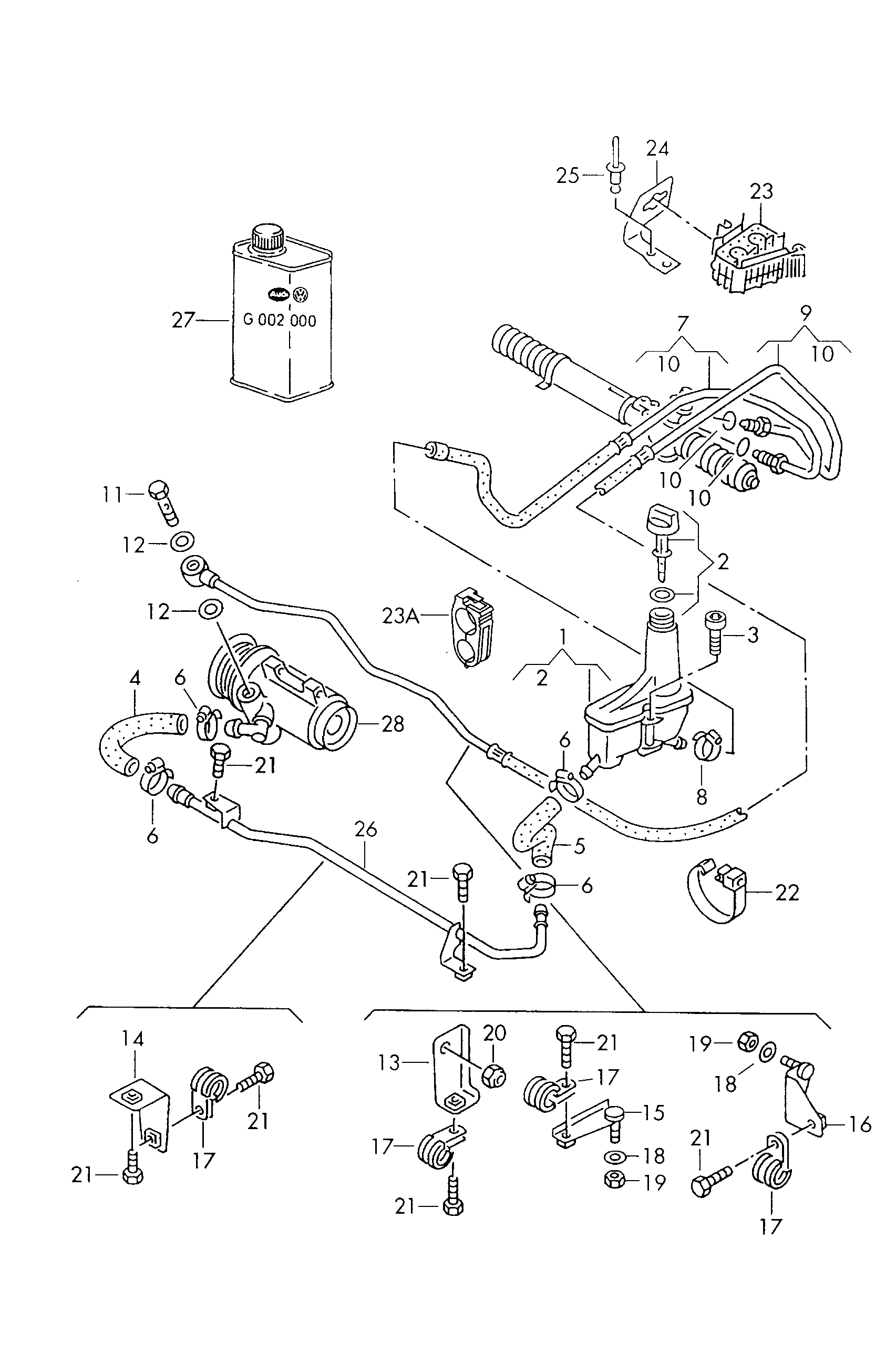

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
(11)
Banjo bolt M 16
M 16
 1J0 422 269 B
(13)
Bracket manualgearbox
 1H0 422 162 A
(19)
Hexagon nut M 10
M 10
 N 101 552 07
(27)
Hydraulic fluid
 G 004 000 M8
(27)
Hydraulic fluid
 G 004 000 M7
(7)
Return hose
 1H2 422 891 B
(9)
Expansion hose 1.8-2.0 Ltr.
 1H2 422 893 T
(9)
Expansion hose AFT,AKS
AFTAKS
1H1 422 893 T
(9)
Expansion hose VR 6
 1H1 422 893 A
(9)
Expansion hose 1.4/1.6 Ltr.
 1H2 422 893 J
(9)
Expansion hose TDI:81 KW
 1H2 422 893 T
(9)
Expansion hose VR 6
 1H2 422 893 A
(9)
Expansion hose
 1H1 422 893 K
(9)
Expansion hose
 1H1 422 893 S
(9)
Expansion hose
 1H2 422 893 K
(9)
Expansion hose
 1H2 422 893 S
(9)
Expansion hose
 1H2 422 893 S
(9)
Expansion hose 16 V
 1H2 422 893 R
(9)
Expansion hose 1.8-2.0 Ltr.
 1H1 422 893 T
(9)
Expansion hose TDI:81 KW
 1H1 422 893 T
(9)
Expansion hose 16 V
 1H1 422 893 R
1
oil container
 1H0 422 371 D
10
O-ring 7,65 X 1,63
7,65 X 1,63
 7M0 422 999
10
O-ring 7,65 X 1,63
7,65 X 1,63
 1H0 422 999
11
Banjo bolt M 16
M 16
 1H0 422 269
11
Banjo bolt M 16
M 16
 WHT 001 799
12
seal ring 16 X 22
16 X 22
 N 013 848 1
12
seal ring 16 X 22
16 X 22
 N 013 848 7
13
Bracket
 1H0 422 162
14
Bracket
 1H0 422 166
15
Bracket manualgearbox
 357 422 163
16
Bracket 4-speedautomatic
 357 422 163 A
17
Clamp 13 X 15
13 X 15
 N 020 620 1
18
Washer 10
10
 N 011 527 11
19
Hexagon nut M 10
M 10
 N 101 552 10
19
Hexagon nut M 10
M 10
 N 011 010 11
2
End cap
 1H0 422 376 C
20
hexagon nut, self-locking M 8
M 8
 N 900 744 04
21
Hexagon bolt M 6 X 12
M 6 X 12
 N 010 212 26
22
Hose bracket
 1H0 422 931
23
Bracket
 1H0 422 941
23A
Bracket Not for this model
 —
24
Bracket
 1H0 422 173
25
Pop rivet 4,8 X 10
4,8 X 10
 N 904 374 01
26
Cooling pipe
 1HM 422 896
27
Hydraulic fluid
 G 004 000 M2
27
Central hydraulic oil andsteering gear oil
 G 002 000
28
Vane pump see illustration: 145-080
145-080
 —
3
Socket head bolt withhexagon socket head M 6 X 60
M 6 X 60
 N 014 722 2
4
Intake hose
 1HM 422 887
4
Intake hose
 1H0 422 887 G
5
Intake hose
 1H0 422 889 C
5
Intake hose
 1H0 422 889 A
6
Clamp 16-28 X 9 X 0,5
16-28 X 9 X 0,5
 N 905 618 01
7
Return hose
 1H1 422 891 B
8
Clamp 12-22 X 9 X 0,4
12-22 X 9 X 0,4
 N 102 582 01
9
Expansion hose 1.4/1.6 Ltr.
 1H1 422 893 AB
9
Expansion hose
 1H1 422 893 J

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these steering diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1997
Generation region
RDW
Generation code
184
Engine codes on this plate
AFT, AKS
Factory group
30 Steering
Factory subgroup
422045

Related factory diagrams

Other published steering plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the oil container connection parts hosesfor power steering diagram for the Mk3 Golf?
This diagram lists 56 OEM part numbers for the Mk3 Golf. The first three are 1J0 422 269 B, 1H0 422 162 A and N 101 552 07.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AFT and AKS.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
