Steering columnsteering tubesteering column tube — Mk3 Golf Steering (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Steering wheel

Generation: Mk3 1997 (RDW) Group: Steering Parts: 16 Primary OEM: 1H1 419 599 A 9 09, 1H2 419 599 B, 1H2 419 555

Steering columnsteering tubesteering column tube for the Volkswagen Golf Mk3 (1997): factory exploded diagram 419025 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 16 OEM part numbers including 1H1 419 599 A 9 09, 1H2 419 599 B and 1H2 419 555. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 16 OEM part numbers across 16 numbered positions.

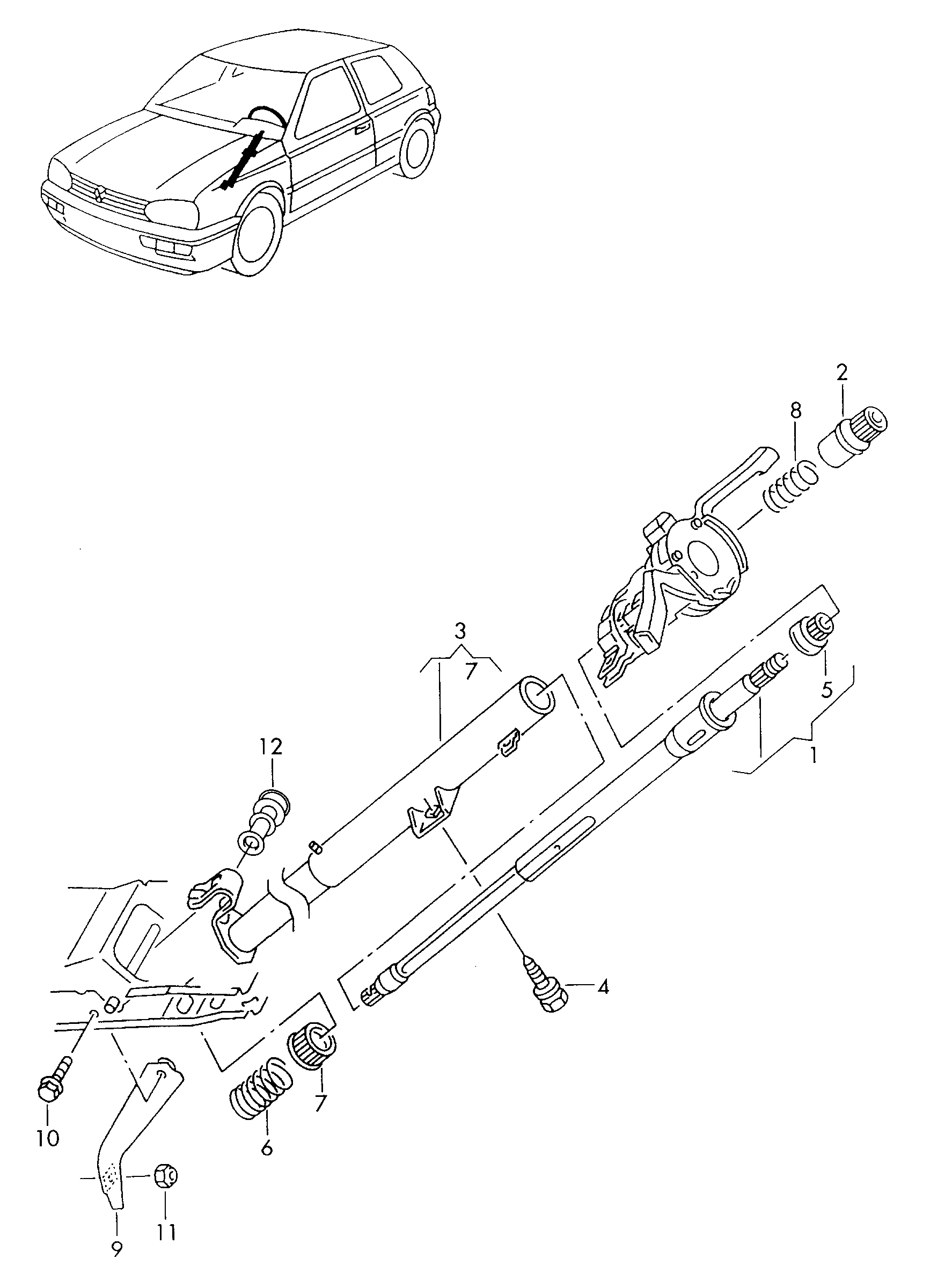

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	natural colours	1H1 419 599 A 9 09
(12)	Bearing bush	1H2 419 599 B
(9)	Retaining plate	1H2 419 555
1	steering tube	1H0 419 503 A
10	Hexagon bolt M 8 X 18 M 8 X 18	111 821 145
11	Hexagon collar nutself-locking M 8 M 8	N 909 083 02
12	Bearing bush	1H1 419 599 A
12	Bearing bush	1H2 419 599 A
2	adapter sleeve	191 419 514
3	steering column tube	1H0 419 563
4	sheer bolt M 8 X 20 M 8 X 20	N 905 422 01
5	Thrust ring	1H0 419 335
6	Pressure spring	1H0 419 343
7	steering column bearing	1H0 419 517 A
8	Pressure spring	1H0 419 667
9	Retaining plate	1HM 419 555 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these steering diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 30 Steering
Factory subgroup: 419025
