Hydraulic pumpoil container connection parts hosesfor power — Mk3 Golf Steering (1996)

Factory title: Volkswagen Golf (1996) - Hydraulic pump. for power steering. oil container and connection parts, hoses

Generation: Mk3 1996 (RDW) Group: Steering Parts: 19 Primary OEM: G 004 000 M8, G 004 000 M7, 1H2 422 891 C

Hydraulic pumpoil container connection parts hosesfor power for the Volkswagen Golf Mk3 (1996): factory exploded diagram 422047 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 18 OEM part numbers across 19 catalogued positions including G 004 000 M8, G 004 000 M7 and 1H2 422 891 C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 18 OEM part numbers across 19 numbered positions.

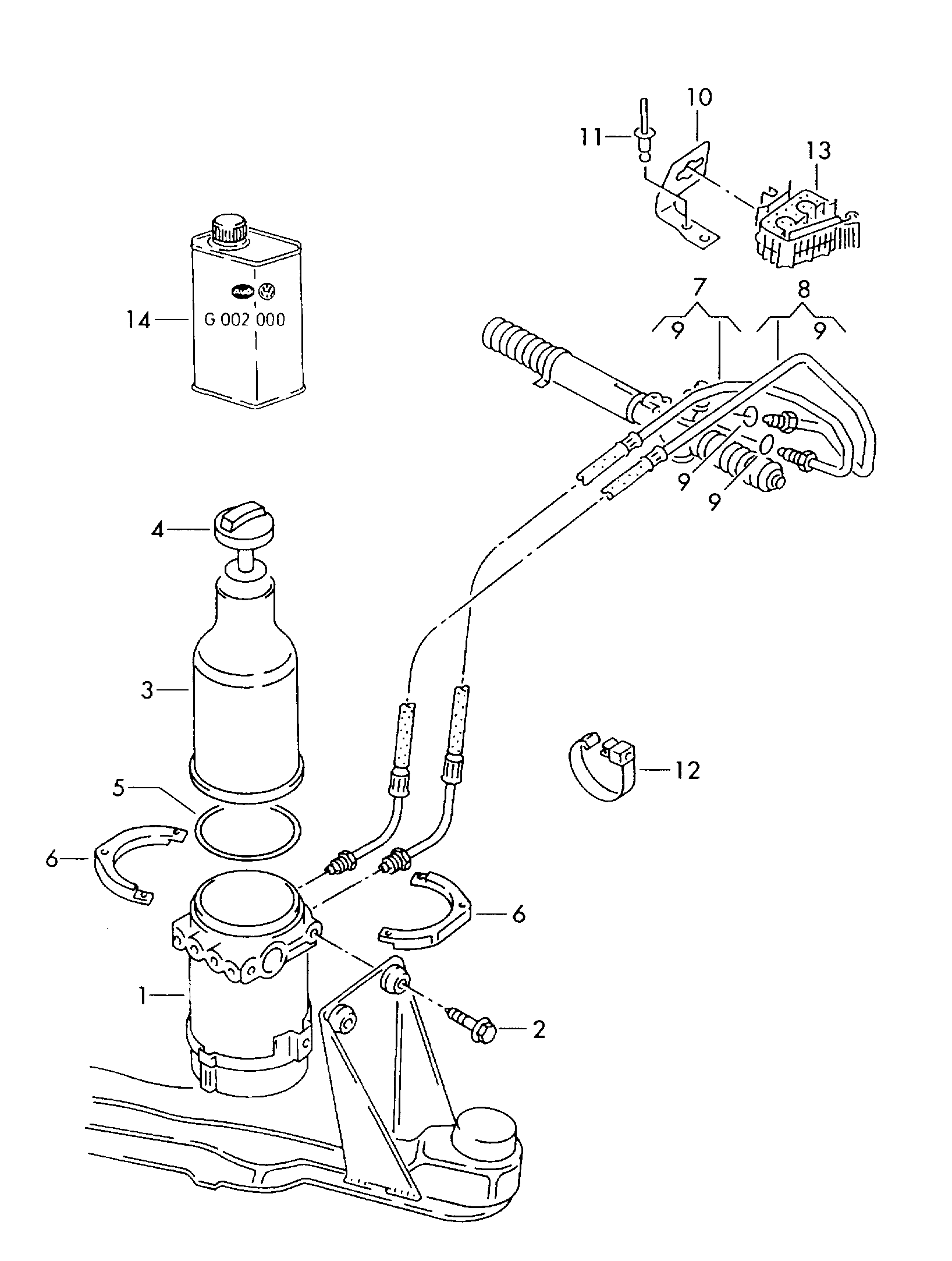

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Hydraulic pumpoil container and connectionparts, hosesfor power steering ecomatic
 —
(14)
Hydraulic fluid
 G 004 000 M8
(14)
Hydraulic fluid
 G 004 000 M7
(7)
Return hose
 1H2 422 891 C
(8)
Expansion hose
 1H2 422 893 F
1
hydraulic pump with electricmotor
 1H0 423 155
10
Bracket
 1H0 422 173
11
Pop rivet 4,8 X 10
4,8 X 10
 N 904 374 01
12
Hose bracket
 1H0 422 931
13
Bracket
 1H0 422 941
14
Hydraulic fluid
 G 004 000 M2
2
Hexagon bolt M 8 X 38
M 8 X 38
 N 102 332 02
3
oil container
 1H0 423 373
4
End cap
 1H0 422 376 B
5
O-ring
 1H0 423 377
6
Retaining bar
 1H0 423 379
7
Return hose
 1H1 422 891 C
8
Expansion hose
 1H1 422 893 F
9
O-ring 7,65 X 1,63
7,65 X 1,63
 7M0 422 999

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these steering diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1996
Generation region
RDW
Generation code
166
Factory group
30 Steering
Factory subgroup
422047

Related factory diagrams

Other published steering plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the hydraulic pumpoil container connection parts hosesfor power diagram for the Mk3 Golf?
This diagram lists 18 OEM part numbers for the Mk3 Golf. The first three are G 004 000 M8, G 004 000 M7 and 1H2 422 891 C.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1996 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
