Steering columnsteering tubesteering column tube manually — Mk3 Golf Steering (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Steering wheel

Generation: Mk3 1997 (RDW) Group: Steering Parts: 28 Primary OEM: 1H1 419 599 A 9 09, 1H2 419 599 B, 1H2 419 555

Steering columnsteering tubesteering column tube manually for the Volkswagen Golf Mk3 (1997): factory exploded diagram 419035 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 28 OEM part numbers including 1H1 419 599 A 9 09, 1H2 419 599 B and 1H2 419 555. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 28 OEM part numbers across 28 numbered positions.

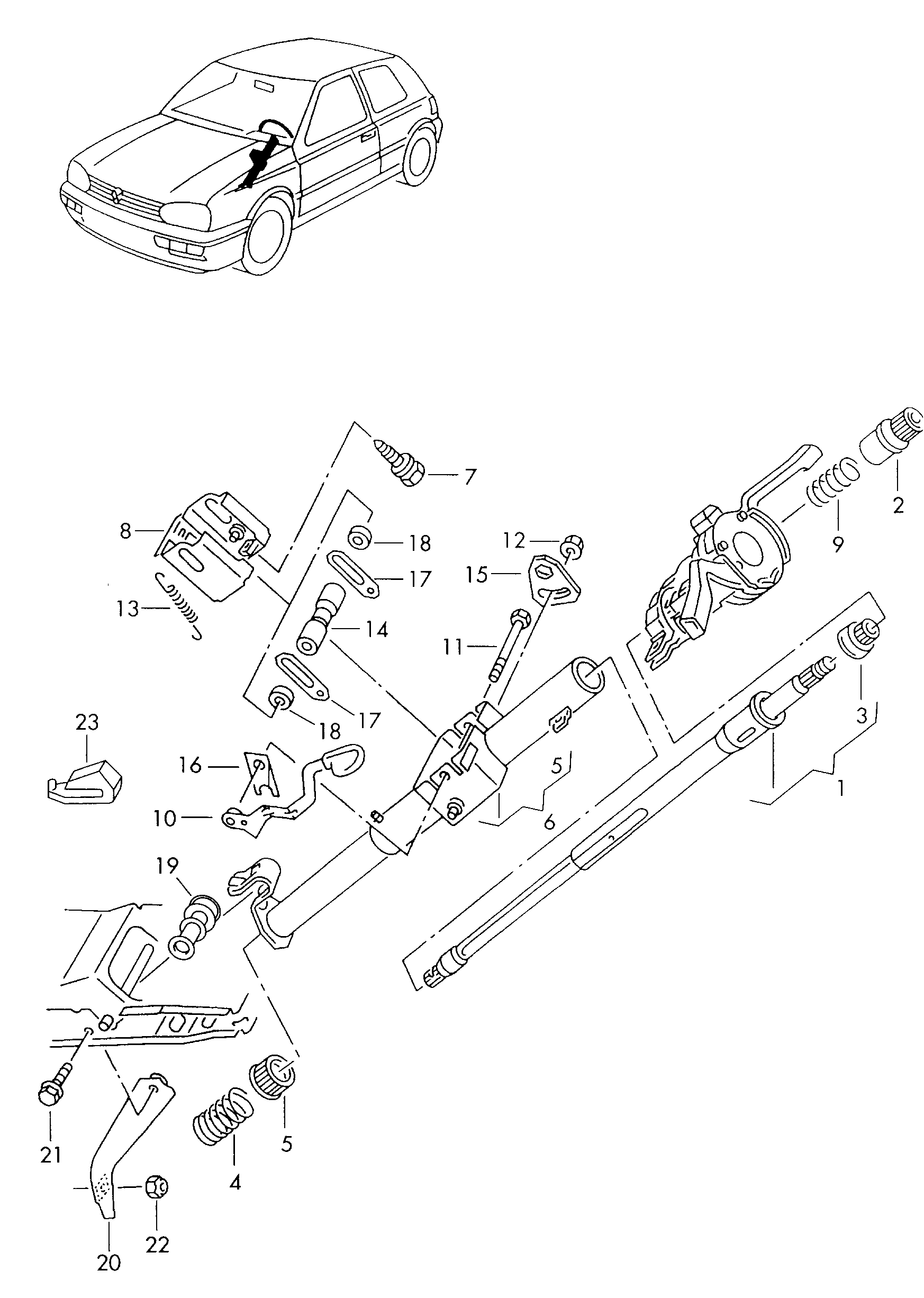

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
natural colours
 1H1 419 599 A 9 09
(19)
Bearing bush
 1H2 419 599 B
(20)
Retaining plate
 1H2 419 555
(22)
Hexagon collar nutself-locking M 8
M 8
 N 909 083 02
1
steering tube
 1H0 419 503 A
10
Actuating lever
 1H0 419 621 B
11
bolt
 1H0 419 623 A
12
hexagon nut, self-locking M 6
M 6
 N 011 183 12
13
tension spring
 1H0 419 625 B
14
Clamping sleeve
 1H0 419 633 A
15
Retaining plate
 357 419 635
16
Shim
 1H0 419 648 A
17
Retaining plate
 1H0 419 701
18
pressure washer
 1H0 419 705
19
Bearing bush
 1H1 419 599 A
2
adapter sleeve
 191 419 514
20
Retaining plate
 1HM 419 555 B
21
Hex collared bolt M 8 X 18
M 8 X 18
 N 019 538 2
22
Hexagon collar nutself-locking M 8
M 8
 N 902 264 03
23
Stop
 171 721 989
3
Thrust ring
 1H0 419 335
4
Pressure spring
 1H0 419 343
5
steering column bearing
 1H0 419 517 A
6
steering column tube
 1H0 419 563 E
7
sheer bolt M 8 X 20
M 8 X 20
 N 905 422 01
8
Bracket
 1H0 419 571 B
8
Bracket
 1H0 419 571 A
9
Pressure spring
 1H0 419 667
