Steering gear track rod — Mk3 Golf Steering (1994 - 1997)

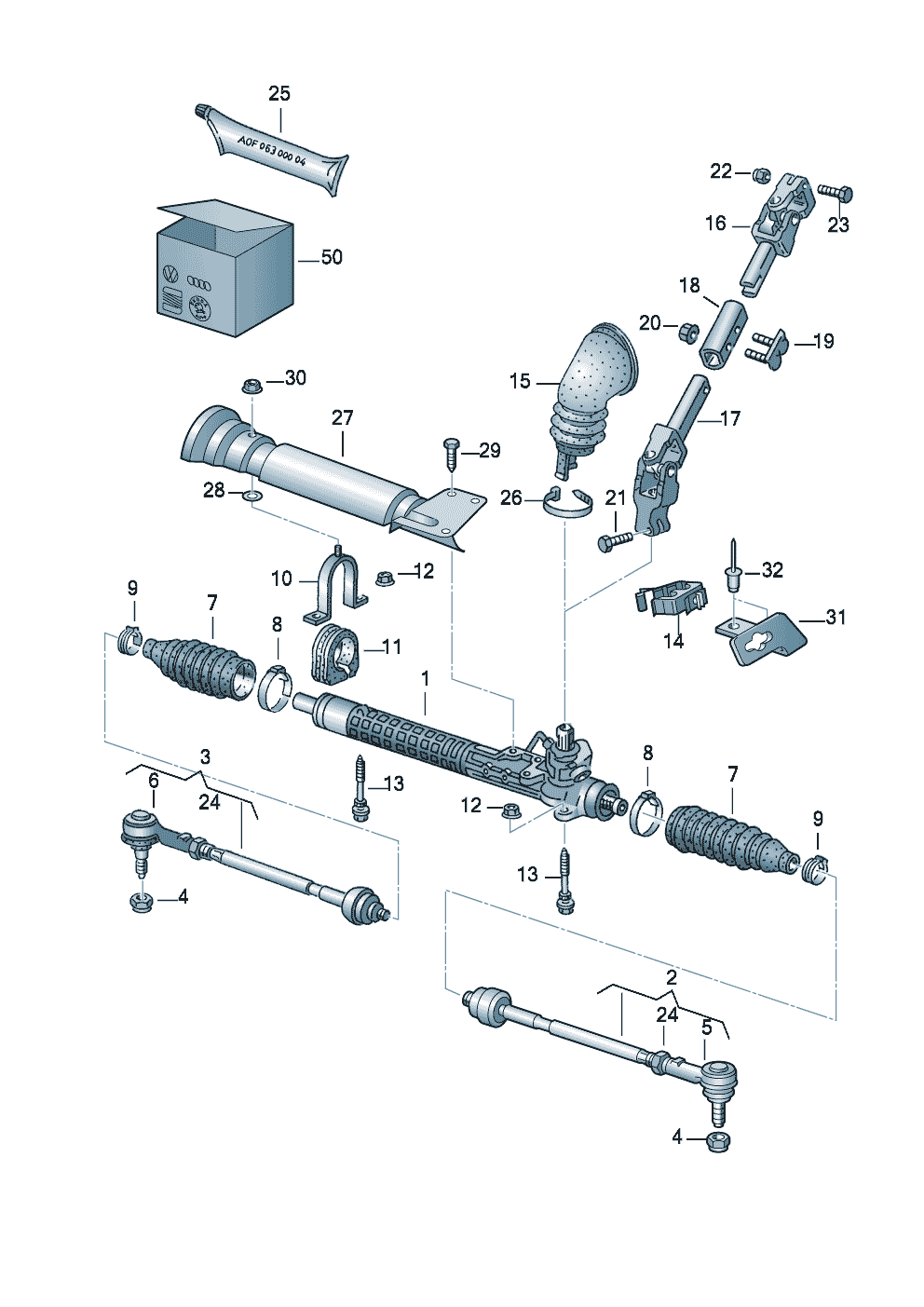

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Track rod. Steering gear
Steering gear track rod for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 422040 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 63 OEM part numbers including 1H2 422 061 X, 6K1 422 061 C and 6K1 422 061 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 63 OEM part numbers across 63 numbered positions.
| № | Description | Part number |
|---|---|---|
| (1) | Steering gear | 1H2 422 061 X |
| (1) | Steering gear | 6K1 422 061 C |
| (1) | Steering gear | 6K1 422 061 A |
| (1) | Steering gear with mobilityassistance | 1H1 422 061 B |
| (1) | Steering gear with mobilityassistance | 1H1 422 061 BX |
| (1) | Steering gear | 6K2 422 061 C |
| (1) | Steering gear | 6K2 422 061 CX |
| (1) | Steering gear | 1H2 422 061 |
| (1) | Steering gear with mobilityassistance | 1H2 422 061 B |
| (1) | Steering gear with mobilityassistance(for modified vehicles) | 1H2 422 061 BX |
| (15) | Prot. sleeve for drive shaft diesel eng. | 1H1 419 523 E |
| (15) | Prot. sleeve for drive shaft diesel eng. | 358 419 523 B |
| (15) | Prot. sleeve for drive shaft diesel eng. | 1H2 419 523 E |
| (15) | Prot. sleeve for drive shaft | 1HS 419 523 |
| (17) | Drive shaft | 1H2 419 952 B |
| (2) | Track rod F 1 E-S-000 001>> | 1H0 422 803 D |
| (24) | Hexagon nut M 14 M 14 | N 102 187 04 |
| (3) | Track rod F 1 E-S-000 001>> | 1H0 422 804 D |
| (5) | tie rod end F 1 E-S-000 001>> | 3A0 422 811 |
| (6) | tie rod end F 1 E-S-000 001>> | 3A0 422 812 |
| (9) | clamp F 1 E-S-024 001>>* 34,6 X 7 X 0,6 34,6 X 7 X 0,6 | N 102 077 01 |
| 1 | Steering gear | 1H1 422 061 X |
| 1 | Steering gear | 1H1 422 061 |
| 10 | Clamp | 1H0 422 875 A |
| 10 | Clamp | 1H0 422 875 |
| 11 | Rubber bush | 1H0 422 884 |
| 12 | Hexagon collar nutself-locking M 8 M 8 | N 902 264 03 |
| 12 | Hexagon collar nutself-locking M 8 M 8 | N 902 264 04 |
| 13 | Hex collared bolt M 8 X 75 X 33 M 8 X 75 X 33 | N 901 845 01 |
| 14 | Bracket | 1H0 422 941 |
| 15 | Prot. sleeve for drive shaft | 1H2 419 523 B |
| 15 | Prot. sleeve for drive shaft | 1H1 419 523 A |
| 16 | Drive shaft | 1H0 419 951 |
| 17 | Drive shaft | 1H1 419 952 B |
| 18 | Connecting sleeve | 1H0 419 913 |
| 19 | Connecting piece | 1H0 419 917 |
| 2 | Track rod F >> 1 E-R-030 000 | 1H0 422 803 |
| 20 | hexagon nut, self-locking M 8 M 8 | N 900 744 04 |
| 21 | Hexagon bolt M 8 X 28 X 15 M 8 X 28 X 15 | N 100 722 02 |
| 22 | hexagon nut, self-locking M 8 M 8 | N 022 146 9 |
| 23 | Hexagon bolt M 8 X 35 X 15 M 8 X 35 X 15 | N 010 335 12 |
| 24 | Hexagon nut M 14 M 14 | N 011 113 5 |
| 24 | Hexagon nut M 14 M 14 | N 102 187 08 |
| 25 | Steering gear grease | G 052 168 A1 |
| 25 | Steering gear grease 250 G 250 G | AOF 063 000 04 |
| 26 | Cable ties 3,6 X 246 3,6 X 246 | N 020 902 2 |
| 27 | Heat shield 1.8 Ltr. | 1H1 422 701 B |
| 28 | Washer 6,5 6,5 | N 011 547 7 |
| 29 | Hex collared bolt M 8 X 16 M 8 X 16 | N 903 285 02 |
| 3 | Track rod F >> 1 E-R-030 000 | 1H0 422 804 |
| 30 | Hexagon collar nut M 6 M 6 | N 902 158 05 |
| 31 | Bracket | 1H0 422 173 |
| 32 | Pop rivet 4,8 X 10 4,8 X 10 | N 904 374 01 |
| 4 | hexagon nut, self-locking M 12 M 12 | N 906 350 01 |
| 4 | hexagon nut, self-locking M 12 M 12 | N 903 213 01 |
| 5 | tie rod end F >> 1 E-R-030 000 | 191 419 811 |
| 50 | Gasket set for assistedsteering | 1H0 498 020 |
| 6 | tie rod end F >> 1 E-R-030 000 | 191 419 812 |
| 7 | boot for tie rod | 191 422 831 |
| 7 | boot for tie rod also use: >>1 E-S-024000 N 102 077 01 >>1 E-S-024000 N 102 077 01 | 1H0 422 831 B |
| 8 | Clamp | 357 422 837 A |
| 9 | Spring band clamp F >> 1 E-S-024 000* | 357 422 839 |
| 9 | Clamp | 1H0 422 839 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these steering diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1994 - 1997
- Generation region
- RDW
- Generation code
- 146
- Factory group
- 30 Steering
- Factory subgroup
- 422040
