Differentialfor 3 speed automatic gearbox — Mk1 Golf EV 8V GTI (1981)

Factory title: Volkswagen Golf (1981) - For manual gearbox. Differential

Generation: Mk1 1981 (RDW) Group: Gearbox Rebuild step 9 Parts: 45 Primary OEM: 010 409 151 D, 010 409 723 D, 020 498 081 A

Differentialfor 3 speed automatic gearbox for the Volkswagen Golf Mk1 (1981): factory exploded diagram 100000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 39 OEM part numbers across 45 catalogued positions including 010 409 151 D, 010 409 723 D and 020 498 081 A. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 39 OEM part numbers across 45 numbered positions.

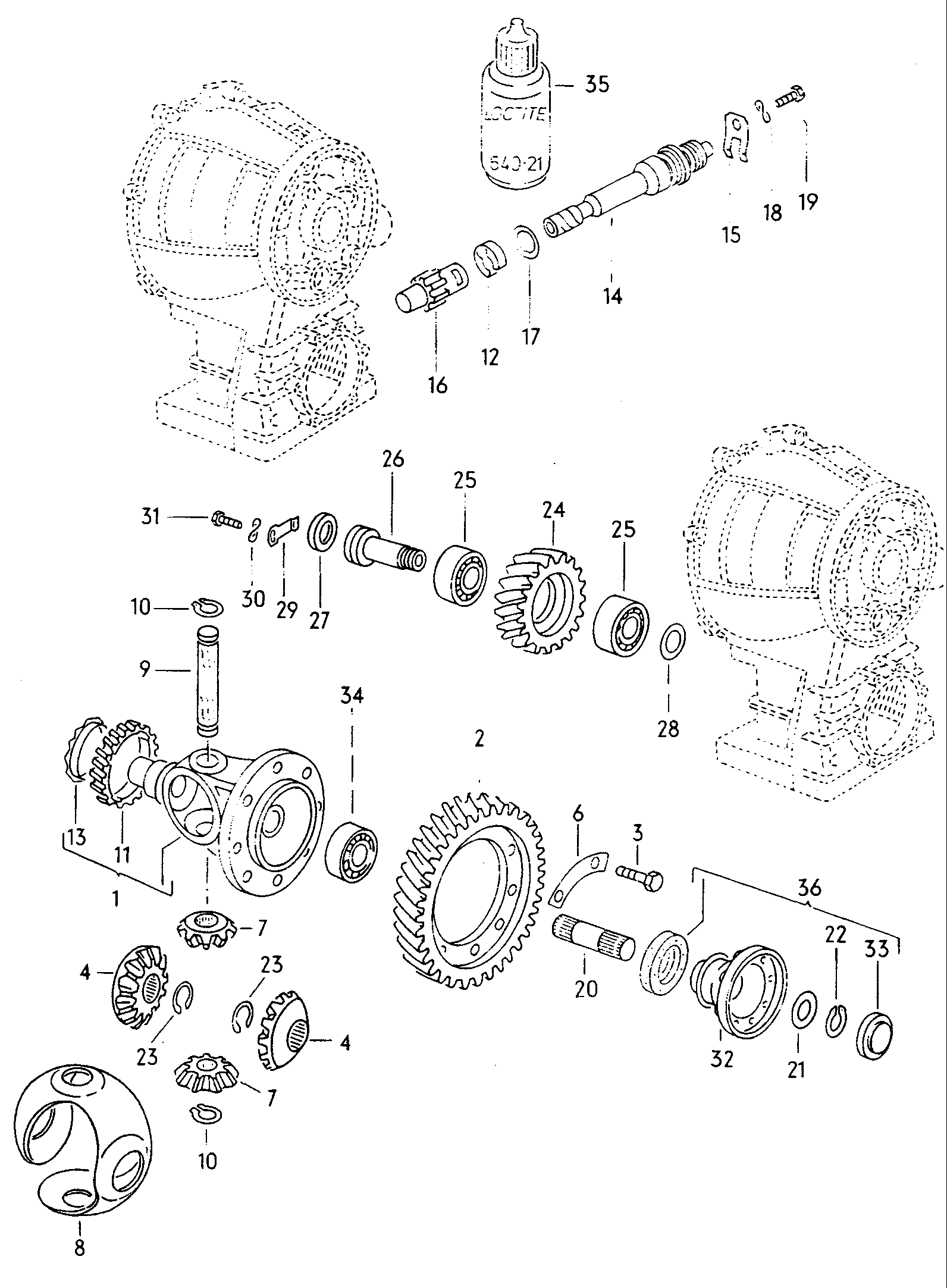

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Differentialfor 3-speed automatic gearbox EQ,EV,TB EV	—
-	1 set: differential pinions	020 498 081 A
(2)	output gear TB	010 409 151 A
(22)	snap ring	020 409 297
(23)	Securing ring 22 X 2,3 22 X 2,3	020 409 299 A
(24)	Intermediate drive wheel TB	010 409 723 A
1	Differential housing	010 409 111 A
10	Securing ring 16 X 1,5 16 X 1,5	N 042 363 1
11	Drive wheel speedometer	010 409 187 B
12	Securing ring	010 409 189
13	Tappet bush fordrive wheel	010 409 190
14	guide for pinion	010 409 193
15	bracket for drive	010 409 195 A
16	speedometer pinion	010 409 196
17	O-ring 17,5 X 3,5 17,5 X 3,5	003 321 419 A
17	O-ring 17,5 X 3,5 17,5 X 3,5	003 321 419
17	O-ring 17,5 X 3,5 17,5 X 3,5	003 321 419 B
18	Spring washer 6 6	N 012 226 5
19	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 14
19	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
2	No longer available EQ,EV EV	—
2	output gear EQ,EV EV	010 409 151 D
20	Output shaft	020 409 291 B
21	Belleville spring	020 409 295
23	Securing ring 22 X 2 22 X 2	020 409 299
24	No longer available EQ,EV EV	—
24	Intermediate drive wheel EQ,EV EV	010 409 723 D
25	Taper roller bearing 59 MM 59 MM	211 405 625
26	axle	010 409 727
27	O-ring 36 X 42 X 3 36 X 42 X 3	068 145 119
28	thrust washer	010 409 733
29	Retaining plate	010 409 668 A
3	Hexagon bolt M 9 X 23,5 M 9 X 23,5	082 409 135
30	Spring washer 6 6	N 012 226 5
31	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
32	Drive flange 90 90	113 517 283 B
33	End cap	020 409 289 B
34	Taper roller bearing	003 519 185 B
36	repair kit forjoint flange	010 498 085
4	Discont. / replace: 020 498 081 A 020 498 081 A	—
6	No longer available	—
7	Discont. / replace: 020 498 081 A 020 498 081 A	—
8	Thrust washer assembly	020 409 170 B
9	shaft - differential pinion	020 409 177
9	shaft - differential pinion	020 409 177 D

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these ev 8v gti diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1981
Generation region: RDW
Generation code: 026
Engine codes on this plate: EV
Variant tags: petrol_8v_gti
Factory group: 02 Gearbox
Factory subgroup: 100000
