Forward direct reverse gear clutch torque converterfor — Mk1 Golf EV 8V GTI (1981)

Factory title: Volkswagen Golf (1981) - For automatic gearbox. forward,direct, reverse gear clutch, torque converter

Generation: Mk1 1981 (RDW) Group: Gearbox Rebuild step 9 Parts: 86 Primary OEM: 010 323 157 H, 010 323 157 F, 010 323 157

Forward direct reverse gear clutch torque converterfor for the Volkswagen Golf Mk1 (1981): factory exploded diagram 92000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 85 OEM part numbers across 86 catalogued positions including 010 323 157 H, 010 323 157 F and 010 323 157. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 85 OEM part numbers across 86 numbered positions.

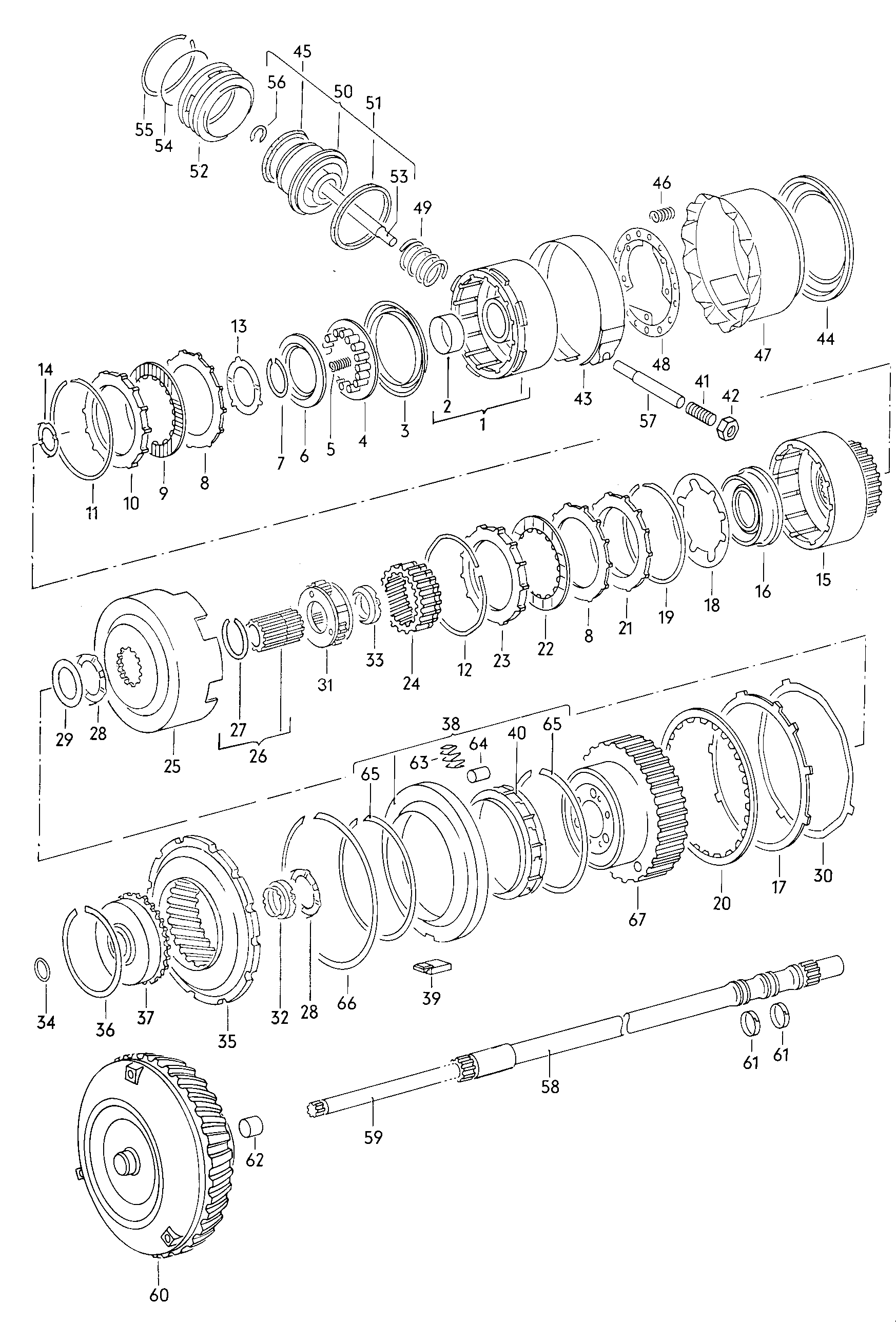

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	forward,direct,reverse gear clutch,torque converterfor automatic gearbox EQ,EV,TB EV	—
(11)	Securing ring 2,3 X 129,3 2,3 X 129,3 EV	010 323 157 H
(11)	Securing ring 1,7 X 129,3 1,7 X 129,3 EV	010 323 157 F
(11)	Securing ring 2,03 X 129,3 2,03 X 129,3 EV	010 323 157
(11)	Securing ring 2,5 X 129,3 2,5 X 129,3 EV	010 323 157 J
(17)	external disc G >> 01 02 1 G 02 02 1>> EQ,EVEQ,EV EV	010 323 227 A
(23)	Pressure plate 6,3 6,3 EV	010 323 153
(23)	Pressure plate 6 6 EV	010 323 253 F
(23)	Pressure plate 7,6 7,6 EV	010 323 253 D
(23)	Pressure plate 7,2 7,2 EV	010 323 253 C
(23)	Pressure plate 6,8 6,8 EV	010 323 253 B
(34)	adjusting washer 1,2 1,2 EV	010 323 346 A
(47)	Pipe G 02 02 1>> EQ,EV EV	010 323 493 E
(60)	Converter 'K' TB 'K' EV	082 323 571 X
(60)	Converter 'K' TB 'K' EV	082 323 571
(60)	Converter 'U' EV 'U' EV	010 323 571 CX
(60)	Converter 'U' EV 'U' EV	010 323 571 C
1	Clutch drum for directand reverse gear EV	010 323 109 B
10	Pressure plate 6,3 6,3 EV	010 323 153
11	Securing ring 1,5 X 129,3 1,5 X 129,3 EV	010 323 157 E
12	Wave spring washer EV	010 323 159 B
13	thrust washer 58 58 EV	010 323 161 A
14	thrust washer 40 40 EV	003 323 165
15	Bell housing forforward gear clutch EV	010 323 209 B
16	piston EV	010 323 217 A
17	external disc TB EV	010 323 227 A
18	Belleville spring forforward gear clutch EV	010 323 229 D
19	Securing ring 2,03 X 129,3 2,03 X 129,3 EV	010 323 157
2	Bearing bush EV	010 323 115
20	Internal disc TB EV	010 323 231 C
20	Internal disc G >> 01 02 1 G 02 02 1>> EQ,EVEQ,EV EV	010 323 231 C
21	Pressure plate EV	010 323 237 A
22	Internal disc EV	010 323 241 C
24	annulus gear EV	010 323 273 B
25	driving shell EV	010 323 281
26	sun gear EV	010 323 285 E
27	snap ring 40 40 EV	N 042 451 1
28	thrust washer EV	010 323 291
29	thrust washer EV	010 323 293 B
3	piston with gasket fordirect and reverse gearclutch EV	010 323 121 B
30	Spring washer EV	010 323 295 C
31	planet pinion carrier EV	010 323 303
32	needle bearing - EV	010 323 339 D
33	needle bearing - EV	010 323 340 D
34	adjusting washer 0,4 0,4 EV	010 323 345 A
35	annulus gear EV	090 323 363 A
36	Securing ring EV	090 323 369
37	hub EV	010 323 373
38	1.gear-freewheel EV	010 323 383 C
39	feather key EV	010 323 389 E
4	seat for pressure spring EV	010 323 127
40	Freewheel segment EV	010 323 395
41	setting screw EV	010 323 455 A
42	Hexagon nut M 12 X 1,5 M 12 X 1,5 EV	N 011 162 9
43	brake band EV	010 323 461 A
44	piston EV	010 323 479 A
45	seal ring 51,2 MM 51,2 MM EV	010 323 487 B
46	Pressure spring EV	010 323 489 B
47	Pipe TB EV	010 323 493 D
47	Pipe G >> 01 02 1 EQ,EV EV	010 323 493 D
48	Support plate EV	010 323 497 C
49	Pressure spring EV	010 323 505 A
5	Pressure spring EV	010 323 129 A
50	piston EV	010 323 512
51	seal ring 71,6 X 80 X 5,6 71,6 X 80 X 5,6 EV	010 323 525 C
52	Cover EV	010 323 529
53	piston rod EV	010 323 517 D
54	O-ring 91 X 3 MM 91 X 3 MM EV	010 323 533
55	Securing ring EV	010 323 537 A
56	Retaining washer EV	010 323 541 B
57	Pin EV	010 323 543 A
58	Turbine shaft EV	010 323 553 A
59	shaft - oil pump EV	010 323 561
6	spring disc EV	010 323 131 A
60	Converter 'M' EQ 'M' EV	089 323 571 AX
60	Converter 'M' EQ 'M' EV	089 323 571 A
61	piston ring EV	010 323 557 A
62	Bearing bush EV	003 323 611
63	Pressure spring EV	010 323 643
64	Cylinder roller 8 X 12 8 X 12 EV	N 903 511 01
65	Securing ring EV	010 323 651
66	Securing ring EV	010 323 653 A
67	planet pinion carrier EV	090 323 805
7	Securing ring 55 55 EV	003 323 135 A
8	external disc EV	010 323 139
9	external disc EV	010 323 141 C
