Forward direct reverse gear clutch torque converterfor — Mk1 Golf EV 8V GTI (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - For automatic gearbox. forward,direct, reverse gear clutch, torque converter

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 85 Primary OEM: 010 323 571 CX, 010 323 571 C, 010 323 157 F

Forward direct reverse gear clutch torque converterfor for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 58000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 82 OEM part numbers across 85 catalogued positions including 010 323 571 CX, 010 323 571 C and 010 323 157 F. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 82 OEM part numbers across 85 numbered positions.

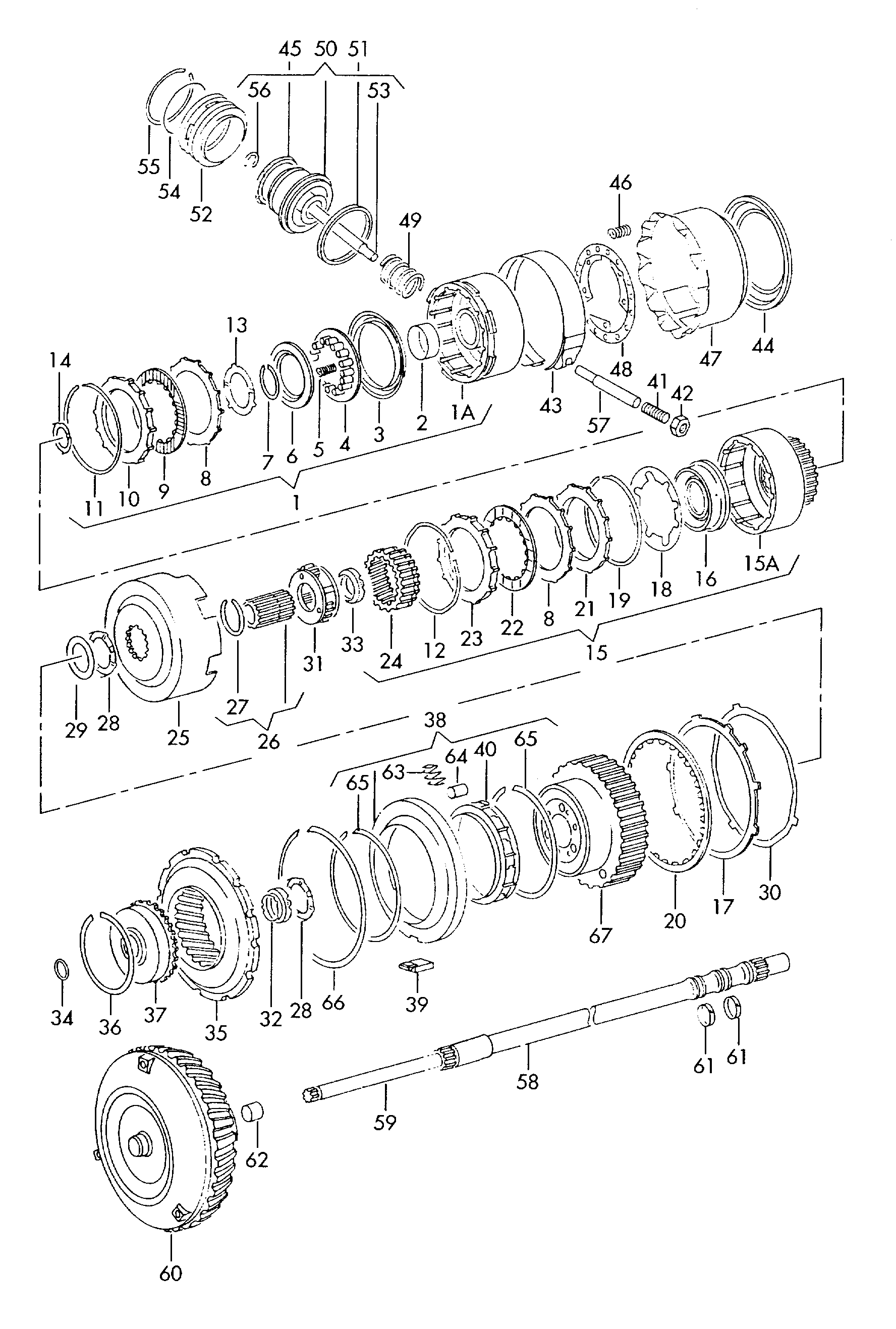

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
forward,direct,reverse gear clutch,torque converterfor automatic gearbox EQ,EV
EV
—
(11)
Securing ring 1,7 X 129,3
1,7 X 129,3
 010 323 157 F
(11)
Securing ring 2,3 X 129,3
2,3 X 129,3
 010 323 157 H
(11)
Securing ring 2,5 X 129,3
2,5 X 129,3
 010 323 157 J
(11)
Securing ringforward gear clutch 2,03 X 129,3
2,03 X 129,3
 010 323 157
(23)
Pressure plate 7,2
7,2
 010 323 253 C
(23)
Pressure plate 6
6
 010 323 253 F
(23)
Pressure plate 6,8
6,8
 010 323 253 B
(23)
Pressure plate 7,6
7,6
 010 323 253 D
(34)
adjusting washer 1,2
1,2
 010 323 346 A
(60)
Converter 'U' EV
'U'
EV
010 323 571 CX
(60)
Converter 'U' EV
'U'
EV
010 323 571 C
1
No longer available
 —
10
Pressure plate 6,3
6,3
 010 323 153
11
Securing ring 1,5 X 129,3
1,5 X 129,3
 010 323 157 E
12
Wave spring washer
 010 323 159 B
13
thrust washer 58
58
 010 323 161 A
14
thrust washer 40
40
 003 323 165
15
No longer available
 —
15A
Bell housing forforward gear clutch
 010 323 209 B
16
piston
 010 323 217 A
17
external disc
 010 323 227 A
18
Belleville spring forforward gear clutch
 010 323 229 D
19
Securing ringforward gear clutch 2,03 X 129,3
2,03 X 129,3
 010 323 157
1A
Clutch drum for directand reverse gear
 010 323 109 B
2
Bearing bush
 010 323 115
20
Internal disc
 010 323 231 C
21
Pressure plate
 010 323 237 A
22
Internal disc
 010 323 241 C
23
Pressure plate 6,3
6,3
 010 323 153
24
annulus gear
 010 323 273 B
25
driving shell
 010 323 281
26
sun gear
 010 323 285 E
27
snap ring 40
40
 N 042 451 1
28
thrust washer
 010 323 291 B
28
thrust washer
 010 323 291
29
thrust washer
 010 323 293 B
3
piston with gasket fordirect and reverse gearclutch
 010 323 121 B
30
Spring washer
 010 323 295 C
31
planet pinion carrier
 010 323 303
32
needle bearing -
 010 323 339 D
33
needle bearing -
 010 323 340 D
34
adjusting washer 0,4
0,4
 010 323 345 A
35
annulus gear
 090 323 363 A
36
Securing ring
 090 323 369
37
hub
 010 323 373
38
1.gear-freewheel
 010 323 383 C
39
feather key
 010 323 389 E
4
seat for pressure spring
 010 323 127
40
Freewheel segment
 010 323 395
41
setting screw
 010 323 455 A
42
Hexagon nut M 12 X 1,5
M 12 X 1,5
 N 011 162 9
43
brake band
 010 323 461 A
44
piston
 010 323 479 A
45
seal ring 51,2 MM
51,2 MM
 010 323 487 B
46
Pressure spring
 010 323 489 B
47
Pipe
 010 323 493 D
48
Support plate
 010 323 497 C
49
Pressure spring
 010 323 505 A
5
Pressure spring
 010 323 129 A
50
piston
 010 323 512
51
seal ring 71,6 X 80 X 5,6
71,6 X 80 X 5,6
 010 323 525 C
52
Cover
 010 323 529
52
Cover
 010 323 529 D
53
piston rod
 010 323 517 D
54
O-ring 91 X 3 MM
91 X 3 MM
 010 323 533
55
Securing ring
 010 323 537 A
56
Retaining washer
 010 323 541 B
57
Pin
 010 323 543 A
58
Turbine shaft
 010 323 553
58
Turbine shaft
 010 323 553 A
59
shaft - oil pump
 010 323 561
6
spring disc
 010 323 131 A
60
Converter 'M' EQ
'M'
 089 323 571 A
60
Converter 'M' EQ
'M'
 089 323 571 AX
61
piston ring
 010 323 557 A
62
Bearing bush
 003 323 611
63
Pressure spring
 010 323 643
64
Cylinder roller 8 X 12
8 X 12
 N 903 511 01
65
Securing ring
 010 323 651
66
Securing ring
 010 323 653 A
67
planet pinion carrier
 090 323 805
7
Securing ring 55
55
 003 323 135 A
8
external discclutch -direct and reverse gearforward gear clutch
 010 323 139
9
external disc
 010 323 141 C

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these ev 8v gti diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1979 - 1980
Generation region
RDW
Generation code
027
Engine codes on this plate
EV
Variant tags
petrol_8v_gti
Factory group
02 Gearbox
Factory subgroup
58000

Related factory diagrams

Other published ev 8v gti plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the forward direct reverse gear clutch torque converterfor diagram for the Mk1 Golf?
This diagram lists 82 OEM part numbers for the Mk1 Golf. The first three are 010 323 571 CX, 010 323 571 C and 010 323 157 F.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The parts on it carry the engine code EV.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
