Final drive complete axle drive housingfor 3 speed — Mk1 Golf EV 8V GTI (1981)

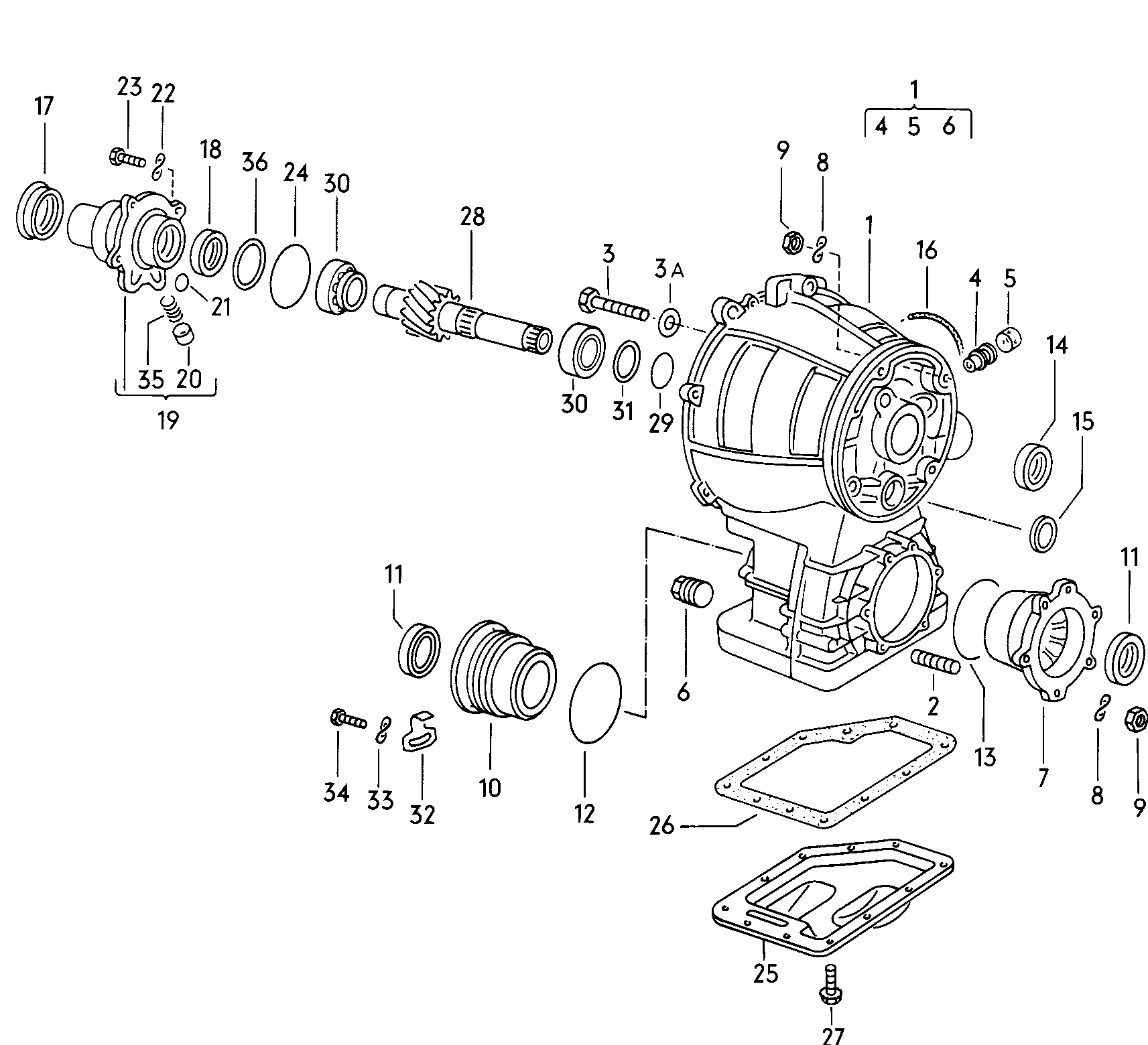

Factory title: Volkswagen Golf (1981) - For manual gearbox. Differential
Final drive complete axle drive housingfor 3 speed for the Volkswagen Golf Mk1 (1981): factory exploded diagram 101000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 63 OEM part numbers across 69 catalogued positions including 010 409 505, 010 409 604 B and 010 409 668. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 63 OEM part numbers across 69 numbered positions.
| № | Description | Part number |
|---|---|---|
| final drive, complete Axle drive housingfor 3-speed automatic gearbox EQ,EV,TB EV | — | |
| - | Sealing compound paste 100 G 100 G | AMV 188 200 03 |
| - | final drive, complete EQ,EV EV | 010 409 505 |
| - | No longer available TB | — |
| - | final drive, complete TB | 010 409 505 B |
| (28) | Output shaft TB | 010 409 604 A |
| (31) | adjusting washer 1,2 1,2 | 010 323 346 A |
| (32) | Retaining plate TB | 010 409 668 A |
| (36) | adjusting washer 2,15 2,15 | 010 519 141 BF |
| (36) | adjusting washer 2,1 2,1 | 010 519 141 BE |
| (36) | adjusting washer 2,05 2,05 | 010 519 141 BD |
| (36) | adjusting washer 2 2 | 010 519 141 BC |
| (36) | adjusting washer 1,95 1,95 | 010 519 141 BB |
| (36) | adjusting washer 1,9 1,9 | 010 519 141 BA |
| (36) | adjusting washer 1,85 1,85 | 010 519 141 AT |
| (36) | adjusting washer 2,2 2,2 | 010 519 141 BG |
| (36) | adjusting washer 1,3 1,3 | 010 519 141 AG |
| (36) | adjusting washer 1,25 1,25 | 010 519 141 AF |
| (36) | adjusting washer 1,2 1,2 | 010 519 141 AE |
| (36) | adjusting washer 1,8 1,8 | 010 519 141 AS |
| (36) | adjusting washer 1,75 1,75 | 010 519 141 AR |
| (36) | adjusting washer 1,7 1,7 | 010 519 141 AQ |
| (36) | adjusting washer 1,65 1,65 | 010 519 141 AP |
| (36) | adjusting washer 1,6 1,6 | 010 519 141 AN |
| (36) | adjusting washer 1,55 1,55 | 010 519 141 AM |
| (36) | adjusting washer 1,5 1,5 | 010 519 141 AL |
| (36) | adjusting washer 1,45 1,45 | 010 519 141 AK |
| (36) | adjusting washer 1,4 1,4 | 010 519 141 AJ |
| (36) | adjusting washer 1,35 1,35 | 010 519 141 AH |
| 1 | No longer available | — |
| 1 | Axle drive housing | 010 409 051 |
| 10 | bearing ring | 010 409 253 A |
| 11 | Discont. / replace: 010 498 085 010 498 085 | — |
| 12 | O-ring 78 X 3 78 X 3 | 010 409 259 A |
| 13 | O-ring 116 X 3 116 X 3 | 010 409 528 |
| 14 | radial shaft seal 38 X 52 X 7 38 X 52 X 7 | 010 409 529 C |
| 15 | Discont. / replace: AMV 188 200 03 AMV 188 200 03 | — |
| 16 | tensioning strap 200 X 205 X 3,5 200 X 205 X 3,5 | 010 409 549 B |
| 17 | radial shaft seal 42 X 60 X 19 42 X 60 X 19 | 010 409 568 |
| 18 | radial shaft seal 42 X 30 X 7 42 X 30 X 7 | 010 409 085 E |
| 19 | bearing tube | 010 409 573 |
| 2 | Threaded pin M 8 X 36 M 8 X 36 | N 014 617 4 |
| 20 | End cap | 003 321 257 A |
| 21 | O-ring 16 X 2,5 16 X 2,5 | 010 409 563 A |
| 22 | Spring washer 8 8 | N 012 228 3 |
| 23 | Hexagon bolt M 8 X 20 M 8 X 20 | N 010 240 16 |
| 24 | O-ring 62 X 13 62 X 13 | 010 409 580 |
| 25 | Cover | 010 409 581 |
| 26 | Seal | 010 409 597 A |
| 27 | Hex collared bolt M 8 X 18 M 8 X 18 | N 900 639 02 |
| 28 | Output shaft EQ,EV EV | 010 409 604 B |
| 28 | No longer available EQ,EV EV | — |
| 29 | O-ring 28 X 2,5 28 X 2,5 | 010 409 637 A |
| 3 | Hexagon bolt M 12 X 58 M 12 X 58 | N 040 338 1 |
| 30 | Taper roller bearing 59 MM 59 MM | 211 405 625 |
| 31 | adjusting washer 0,4 0,4 | 010 323 345 A |
| 32 | Retaining plate EQ,EV EV | 010 409 668 |
| 33 | Spring washer 6 6 | N 012 226 5 |
| 34 | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 14 |
| 34 | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 26 |
| 35 | Pressure spring | 010 409 713 A |
| 36 | adjusting washer 1,15 1,15 | 010 519 141 AD |
| 3A | Washer 13 X 24 X 2,5 13 X 24 X 2,5 | N 011 531 7 |
| 4 | Breather line | 003 507 141 C |
| 5 | Cover | 003 507 145 |
| 6 | sealing plug M 24 X 1,5 M 24 X 1,5 | 012 301 127 F |
| 7 | Cover | 010 409 117 A |
| 8 | Spring washer 8 8 | N 012 228 3 |
| 9 | Hexagon nut M 8 M 8 | N 011 008 22 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these ev 8v gti diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1981
- Generation region
- RDW
- Generation code
- 026
- Engine codes on this plate
- EV
- Variant tags
- petrol_8v_gti
- Factory group
- 02 Gearbox
- Factory subgroup
- 101000
