Planetary gears w regulator turbine shaft gear housing — Mk1 Golf EV 8V GTI (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Gear housing. Planetary gears w. regulator and turbine shaft

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 81 Primary OEM: N 012 438 2, 010 321 173 E, 003 321 419

Planetary gears w regulator turbine shaft gear housing for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 53000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 77 OEM part numbers across 81 catalogued positions including N 012 438 2, 010 321 173 E and 003 321 419. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 77 OEM part numbers across 81 numbered positions.

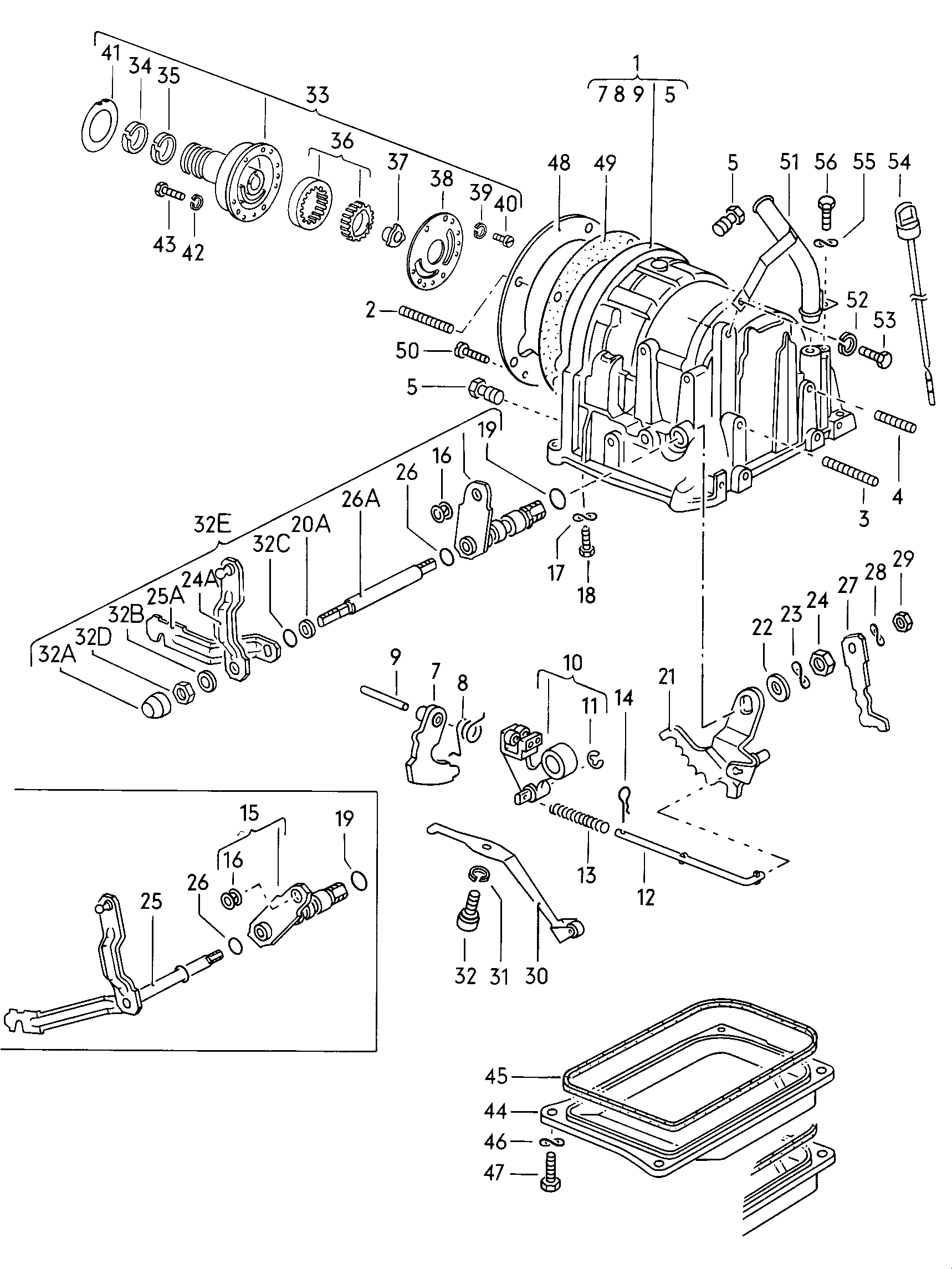

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Gear housing automatic EQ,EV automatic EV	—
	Planetary gears w. regulatorand turbine shaft automatic EQ,EV automatic EV	—
-	Retaining washer 9 9	N 012 438 2
-	lever for cable	010 321 173 E
-	O-ring 24,5 24,5	003 321 419
-	O-ring 17,5 X 3,5 17,5 X 3,5	003 321 419 A
-	O-ring 17,5 X 3,5 17,5 X 3,5	003 321 419 B
-	3-speed automatic gearbox	010 300 035 AX
-	Planetary gears w. regulatorand turbine shaft	010 321 021 AX
-	Retaining washer G 15 05 0>>* 6 6	N 012 436 2
(10)	engaging lever forparking lock also use: >>G 14 053010 321 153 N 012 436 2 >>G 14 053010 321 153 N 012 436 2	010 321 135
(12)	Actuating rodwith pressure spring G 15 05 0>>*	010 321 153
1	Gear housing	010 321 101 G
11	Retaining washer G >> 14 05 0* 4 4	N 012 434 2
12	operating rod G >> 14 05 0*	010 321 155
13	No longer available	—
14	Securing bars G >> 14 05 0*	010 321 161
15	lever for accelerator cable,cables	010 398 201
16	bush for lever	003 321 177
17	Spring washer 6 6	N 012 226 5
18	Hexagon bolt M 6 X 13,5 M 6 X 13,5	N 010 224 1
19	O-ring 14 X 2,5 14 X 2,5	N 028 201 2
2	Threaded pin M 8 X 70 M 8 X 70	N 900 028 02
20A	support washer G 13 11 9>>	010 321 180 B
20A	Thrust ring G >> 12 11 9	010 321 180
21	locking segment	010 321 191 A
22	Washer 16 X 28 X 2 16 X 28 X 2	N 900 477 01
23	Spring washer 16 16	N 012 238 5
24	Hexagon nut M 16 X 1,5 M 16 X 1,5	N 011 164 15
24	Hexagon nut M 16 X 1,5 M 16 X 1,5	N 011 164 2
24A	lever for bowden cable G 13 11 9>>	010 321 201 G
24A	lever for bowden cable G 13 11 9>>	010 321 201 F
25	No longer available	—
25A	lever for accelerator cable G 13 11 9>>	010 321 205 E
26	O-ring 8,3 X 2,4 8,3 X 2,4	010 321 182
26A	shaft for accelerator cable G 13 11 9>>	010 321 209 C
27	lever	010 321 215 E
28	Spring washer 8 8	N 012 228 3
29	Hexagon nut M 8 M 8	N 011 008 8
3	Threaded pin M 10 X 52 M 10 X 52	N 014 692 1
30	leaf spring	010 321 221
31	spring ring 8 8	N 012 038 8
31	spring ring 8 8	N 012 038 7
32	Socket head bolt withhexagon socket head M 8 X 18 M 8 X 18	N 014 712 3
32A	dust cap G 13 11 9>>	010 321 227
32B	Shim G 13 11 9>>	010 321 229
32C	Securing ring G 13 11 9>> 10 X 1 10 X 1	N 023 641 1
32D	Hexagon nut G 13 11 9>> M 10 X 1 M 10 X 1	N 011 137 1
32E	lever for accelerator cable,cables	010 398 201
33	oil pump also use: 010 323 161 A 010 323 161 A	010 321 241 F
34	piston ring foroil pump	003 321 261
35	piston ring foroil pump	010 321 261
36	gear set	003 321 263
37	drive for oil pump	003 321 273
38	plate for oil pump	010 321 279
39	spring ring 4 4	N 012 004 3
4	Threaded pin M 10 X 33 M 10 X 33	N 014 517 1
40	fillister hd. bolt M 4 X 6 M 4 X 6	N 014 121 2
41	thrust washer 58 58	010 323 161 A
42	spring ring B 6 B 6	N 012 036 5
42	spring ring 6 6	N 012 006 4
43	Hexagon bolt M 6 X 35 M 6 X 35	N 010 347 3
43	Hexagon bolt M 6 X 35 M 6 X 35	N 010 221 3
44	Transmission oil sump	010 321 361 F
45	gasket for oil sump	010 321 371 B
46	spring ring 8 8	N 012 038 7
47	Hexagon bolt M 8 X 20 M 8 X 20	N 010 240 16
48	Intermediate plate	010 321 383 B
49	Seal	010 321 385 B
5	sealing plug M 10 X 1 M 10 X 1	003 507 133 A
50	Socket head bolt M 5 X 15 M 5 X 15	N 010 702 1
51	oil filler pipe	010 321 405 A
52	spring ring 10 10	N 012 011 3
53	Hexagon bolt M 10 X 22 M 10 X 22	N 010 253 7
54	Oil dipstickmarked green 350 MM 350 MM	010 321 431 H
55	Spring washer 6 6	N 012 226 5
56	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
56	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 14
7	lever for parking lock	010 321 117 B
8	torsion spring	010 321 121 A
9	pin - engagement lever	010 321 123
