Final drive complete axle drive housingfor 3 speed — Mk1 Golf EV 8V GTI (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - For manual gearbox. Differential

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 72 Primary OEM: 010 409 505 X, 010 409 505, 010 323 346 A

Final drive complete axle drive housingfor 3 speed for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 64000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 66 OEM part numbers across 72 catalogued positions including 010 409 505 X, 010 409 505 and 010 323 346 A. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 66 OEM part numbers across 72 numbered positions.

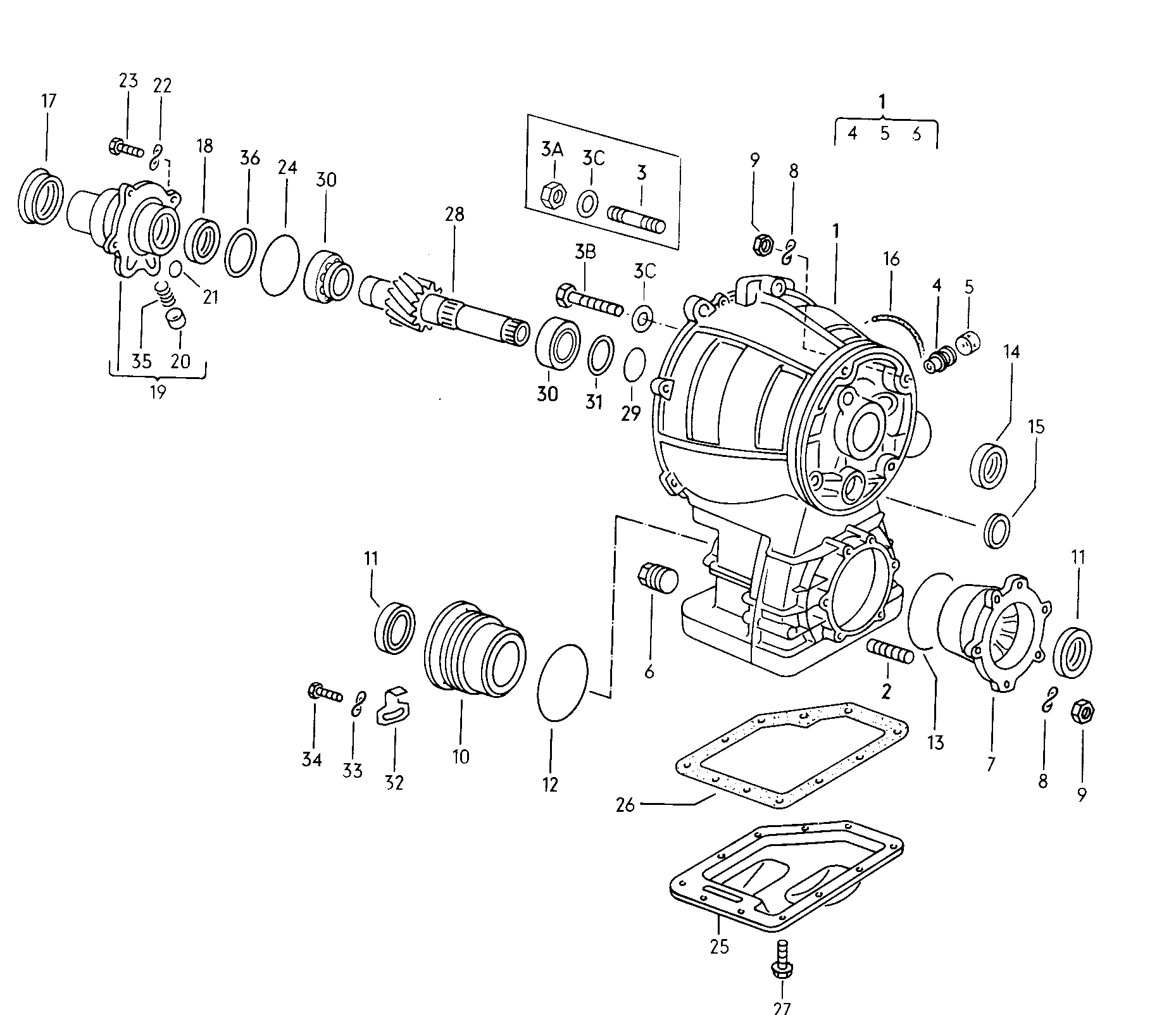

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
final drive, complete Axle drive housingfor 3-speed automatic gearbox EQ,EV
EV
—
-
final drive, complete
 010 409 505 X
-
final drive, complete
 010 409 505
-
No longer available
 —
(31)
adjusting washer 1,2
1,2
 010 323 346 A
(36)
adjusting washer 2
2
 010 519 141 BC
(36)
adjusting washer 1,95
1,95
 010 519 141 BB
(36)
adjusting washer 1,9
1,9
 010 519 141 BA
(36)
adjusting washer 1,85
1,85
 010 519 141 AT
(36)
adjusting washer 1,8
1,8
 010 519 141 AS
(36)
adjusting washer 1,75
1,75
 010 519 141 AR
(36)
adjusting washer 1,7
1,7
 010 519 141 AQ
(36)
adjusting washer 1,25
1,25
 010 519 141 AF
(36)
adjusting washer 2,2
2,2
 010 519 141 BG
(36)
adjusting washer 2,15
2,15
 010 519 141 BF
(36)
adjusting washer 2,1
2,1
 010 519 141 BE
(36)
adjusting washer 2,05
2,05
 010 519 141 BD
(36)
adjusting washer 1,4
1,4
 010 519 141 AJ
(36)
adjusting washer 1,35
1,35
 010 519 141 AH
(36)
adjusting washer 1,3
1,3
 010 519 141 AG
(36)
adjusting washer 1,2
1,2
 010 519 141 AE
(36)
adjusting washer 1,65
1,65
 010 519 141 AP
(36)
adjusting washer 1,6
1,6
 010 519 141 AN
(36)
adjusting washer 1,55
1,55
 010 519 141 AM
(36)
adjusting washer 1,5
1,5
 010 519 141 AL
(36)
adjusting washer 1,45
1,45
 010 519 141 AK
1
No longer available
 —
1
Axle drive housing
 010 409 051
10
bearing ring
 010 409 253 A
11
see illustration: 63 / NR.37
63 / NR.37
 —
12
O-ring
 010 409 259
12
O-ring 78 X 3
78 X 3
 010 409 259 A
13
O-ring
 010 409 528
14
radial shaft seal 38 X 52 X 7
38 X 52 X 7
 010 409 529 C
15
Discont. / replace: AMV 188 200 03
AMV 188 200 03
 —
16
O-ring
 010 409 549 A
16
tensioning strap 200 X 205 X 3,5
200 X 205 X 3,5
 010 409 549 B
17
radial shaft seal 42 X 60 X 19
42 X 60 X 19
 010 409 568
18
radial shaft seal 42 X 30 X 7
42 X 30 X 7
 010 409 085 E
18
radial shaft seal 42 X 7
42 X 7
 010 409 085 D
19
bearing tube
 010 409 573
2
Threaded pin M 8 X 36
M 8 X 36
 N 014 617 4
20
End cap
 003 321 257 A
21
O-ring
 010 409 563 A
22
Spring washer 8
8
 N 012 228 3
23
Hexagon bolt M 8 X 20
M 8 X 20
 N 010 240 16
24
O-ring
 010 409 580
25
Cover
 010 409 581
26
Seal
 010 409 597
26
Seal
 010 409 597 A
27
Hex collared bolt M 8 X 18
M 8 X 18
 N 900 639 02
28
Output shaft
 010 409 604 B
28
No longer available
 —
29
O-ring
 010 409 637 A
3
Threaded pin G >> 03 01 9 AM 12 AX 72
AM 12 AX 72
 N 014 686 1
30
Taper roller bearing 59 MM
59 MM
 211 405 625
31
adjusting washer 0,4
0,4
 010 323 345 A
32
Retaining plate
 010 409 668
33
Spring washer 6
6
 N 012 226 5
34
Hexagon bolt M 6 X 12
M 6 X 12
 N 010 212 26
34
Hexagon bolt M 6 X 12
M 6 X 12
 N 010 212 14
35
Pressure spring
 010 409 713 A
36
adjusting washer 1,15
1,15
 010 519 141 AD
3A
Hexagon nut G >> 03 01 9 M 12
M 12
 N 011 030 4
3B
Hexagon bolt G 04 01 9>>see workshop manual M 12 X 583-1/1979
M 12 X 583-1/1979
 N 040 338 1
3C
Washer 13 X 24 X 2,5
13 X 24 X 2,5
 N 011 531 7
4
Breather line
 003 507 141 C
5
Cover
 003 507 145
6
sealing plug M 24 X 1,5
M 24 X 1,5
 012 301 127 F
7
Cover
 010 409 117 A
8
Spring washer 8
8
 N 012 228 3
9
Hexagon nut M 8
M 8
 N 011 008 22
