Valve bodyoil strainerfor automatic gearbox — Mk1 Golf EV 8V GTI (1981)

Factory title: Volkswagen Golf (1981) - For automatic gearbox. oil strainer. valve body

Generation: Mk1 1981 (RDW) Group: Gearbox Rebuild step 9 Parts: 31 Primary OEM: 010 398 009, 003 325 287, 010 325 032 B

Valve bodyoil strainerfor automatic gearbox for the Volkswagen Golf Mk1 (1981): factory exploded diagram 93000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 22 OEM part numbers across 31 catalogued positions including 010 398 009, 003 325 287 and 010 325 032 B. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 22 OEM part numbers across 31 numbered positions.

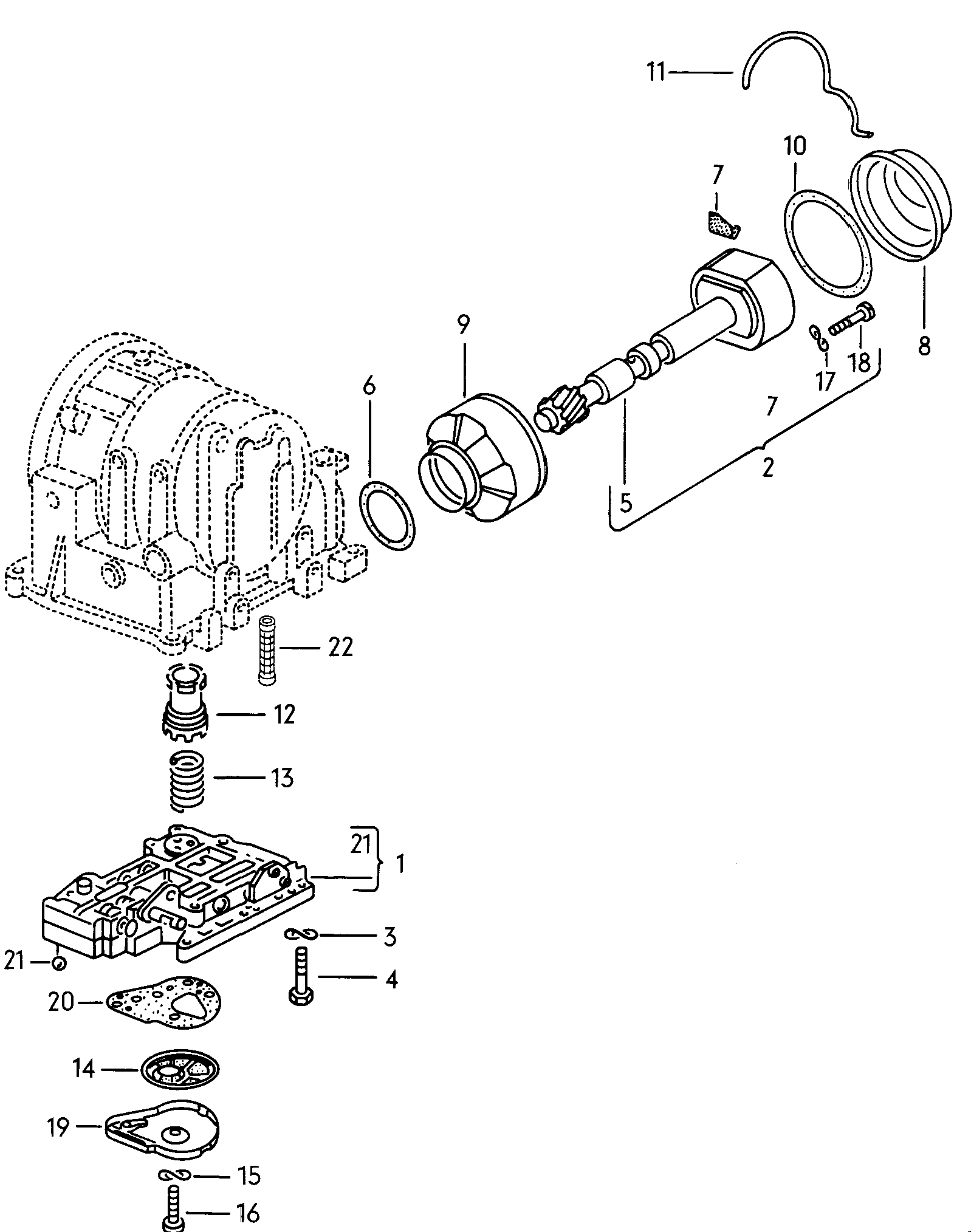

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	valve bodyoil strainerfor automatic gearbox EQ,EV,TB EV	—
-	Gasket set for oil strainer EV	010 398 009
-	Manual slide valve EV	003 325 287
1	No longer available EV	—
1	valve body without governor also use: 'BA'003 325 287 EV 'BA'003 325 287 EV	010 325 032 B
10	O-ring 90 X 4,2 90 X 4,2 EV	010 325 381 A
11	No longer available EV	—
11	angled bracket EV	010 325 385
12	piston for accumulator EV	003 325 405 F
13	Pressure spring EV	003 325 417
14	oil strainer EV	010 325 421 A
15	Spring washer 5 5 EV	N 012 225 3
16	fillister hd. bolt M 5 X 15 M 5 X 15 EV	N 014 131 3
17	Spring washer 5 5 EV	N 012 225 3
18	fillister hd. bolt 5 X 40 X 25 5 X 40 X 25 EV	N 014 153 1
19	cover for oil strainer EV	010 325 429 A
2	No longer available EV	—
2	governor EV	010 325 041
20	gasket for oil strainer EV	010 325 443
21	ball 3 3 EV	N 025 652 2
22	No longer available EV	—
3	Spring washer 6 6 EV	N 012 226 5
4	Hexagon bolt M 6 X 30 M 6 X 30 EV	N 010 346 7
5	Regulator shaft EV	010 325 305 D
5	No longer available EV	—
6	O-ring 58,6 X 3 58,6 X 3 EV	021 105 279
7	No longer available EV	—
8	No longer available EV	—
8	Cover EV	010 325 373 A
9	housing EV	010 325 379 A
9	No longer available EV	—
