Differentialfor 3 speed automatic gearbox — Mk1 Golf EV 8V GTI (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - For manual gearbox. Differential

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 51 Primary OEM: 020 409 299 A, 010 409 111 A, N 042 363 1

Differentialfor 3 speed automatic gearbox for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 63000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 45 OEM part numbers across 51 catalogued positions including 020 409 299 A, 010 409 111 A and N 042 363 1. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 45 OEM part numbers across 51 numbered positions.

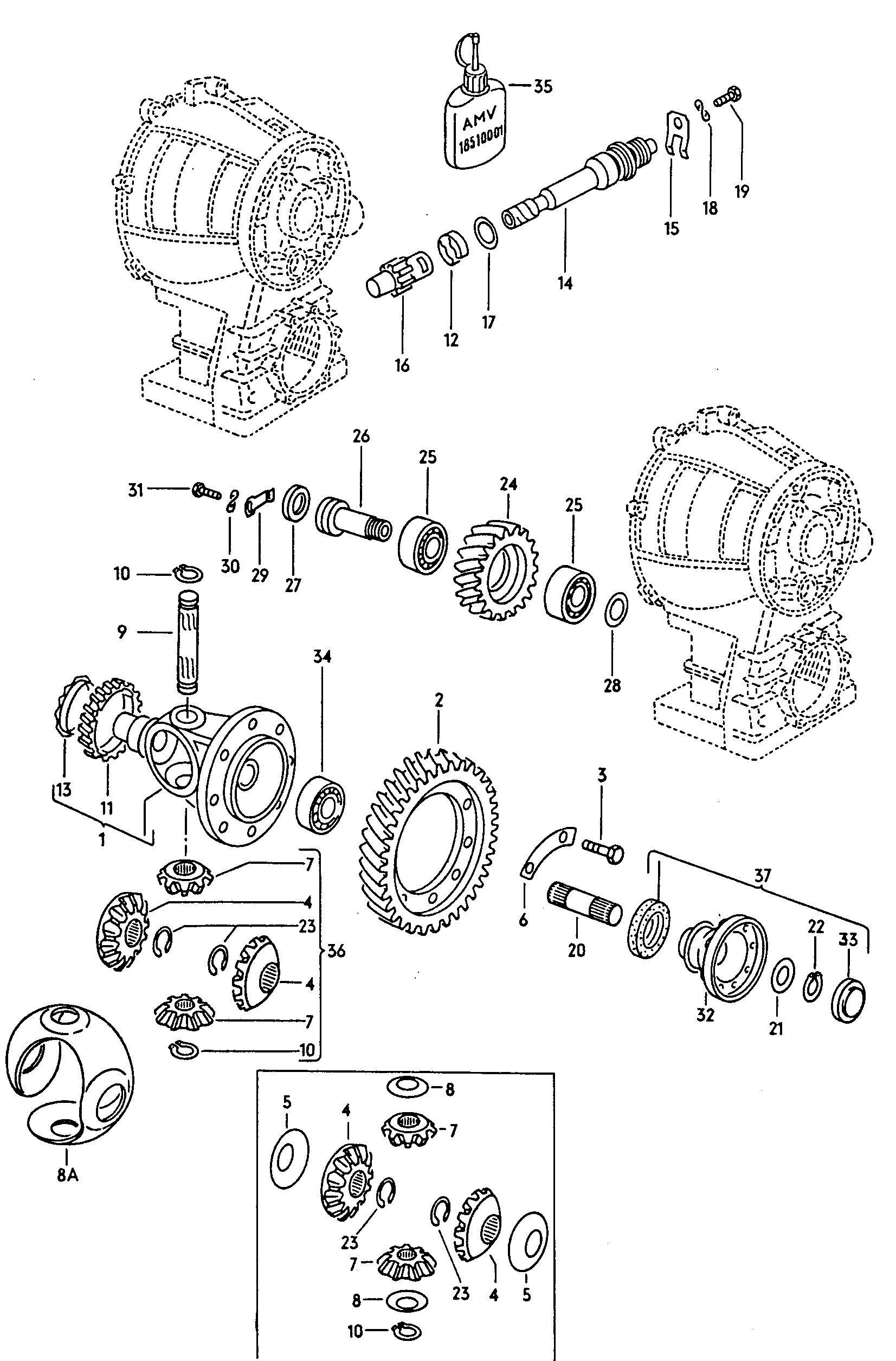

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Differentialfor 3-speed automatic gearbox EQ,EV EV	—
(23)	Securing ring 22 X 2,3 22 X 2,3	020 409 299 A
1	Differential housing also use: >>G 21 020020 409 170 B >>G 21 020020 409 170 B	010 409 111 A
10	Securing ring 16 X 1,5 16 X 1,5	N 042 363 1
11	Drive wheel speedometer	010 409 187 B
12	Securing ring	010 409 189
13	Tappet bush fordrive wheel	010 409 190
14	guide for pinion	010 409 193
15	bracket for drive	010 409 195 A
16	speedometer pinion	010 409 196
17	O-ring 17,5 X 3,5 17,5 X 3,5	003 321 419 A
17	O-ring 24,5 24,5	003 321 419
17	O-ring 17,5 X 3,5 17,5 X 3,5	003 321 419 B
18	Spring washer 6 6	N 012 226 5
19	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
19	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 14
2	No longer available	—
2	output gear	010 409 151 D
20	Output shaft	020 409 291 A
20	Output shaft	020 409 291 B
21	Belleville spring	020 409 295
22	Securing ring	010 409 297
22	snap ring	020 409 297
23	Securing ring 22 X 2 22 X 2	020 409 299
24	No longer available	—
24	Intermediate drive wheel	010 409 723 D
25	Taper roller bearing 59 MM 59 MM	211 405 625
26	axle	010 409 727
27	O-ring 36 X 42 X 3 36 X 42 X 3	068 145 119
28	thrust washer	010 409 733
29	Retaining plate	010 409 668 A
3	Hexagon bolt M 9 X 23,5 M 9 X 23,5	082 409 135
30	Spring washer 6 6	N 012 226 5
31	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
32	Drive flange 90 90	113 517 283 B
33	End cap	113 517 289 A
33	End cap	020 409 289 B
34	Taper roller bearing	003 519 185 B
35	Locking fluid	AMV 185 101 A1
35	Locking fluid 10 ML 10 ML	AMV 185 100 01
36	1 set: differential pinions	020 498 081 A
37	repair kit forjoint flange	010 498 085
4	Discont. / replace: 020 498 081 A 020 498 081 A	—
5	No longer available	—
5	thrust washer G >> 21 02 0	020 409 160
7	Discont. / replace: 020 498 081 A 020 498 081 A	—
8	thrust washer G >> 21 02 0	020 409 170
8A	Thrust washer assembly G 22 02 0>>	020 409 170 B
8A	Thrust washer assembly G 22 02 0>>	020 409 170 A
9	shaft - differential pinion	020 409 177 A
9	shaft - differential pinion	020 409 177 D
