Valve bodyoil strainerfor automatic gearbox — Mk1 Golf EV 8V GTI (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - For automatic gearbox. oil strainer. valve body

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 30 Primary OEM: 010 398 009, 003 325 287, 010 325 032 B

Valve bodyoil strainerfor automatic gearbox for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 59000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 22 OEM part numbers across 30 catalogued positions including 010 398 009, 003 325 287 and 010 325 032 B. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 22 OEM part numbers across 30 numbered positions.

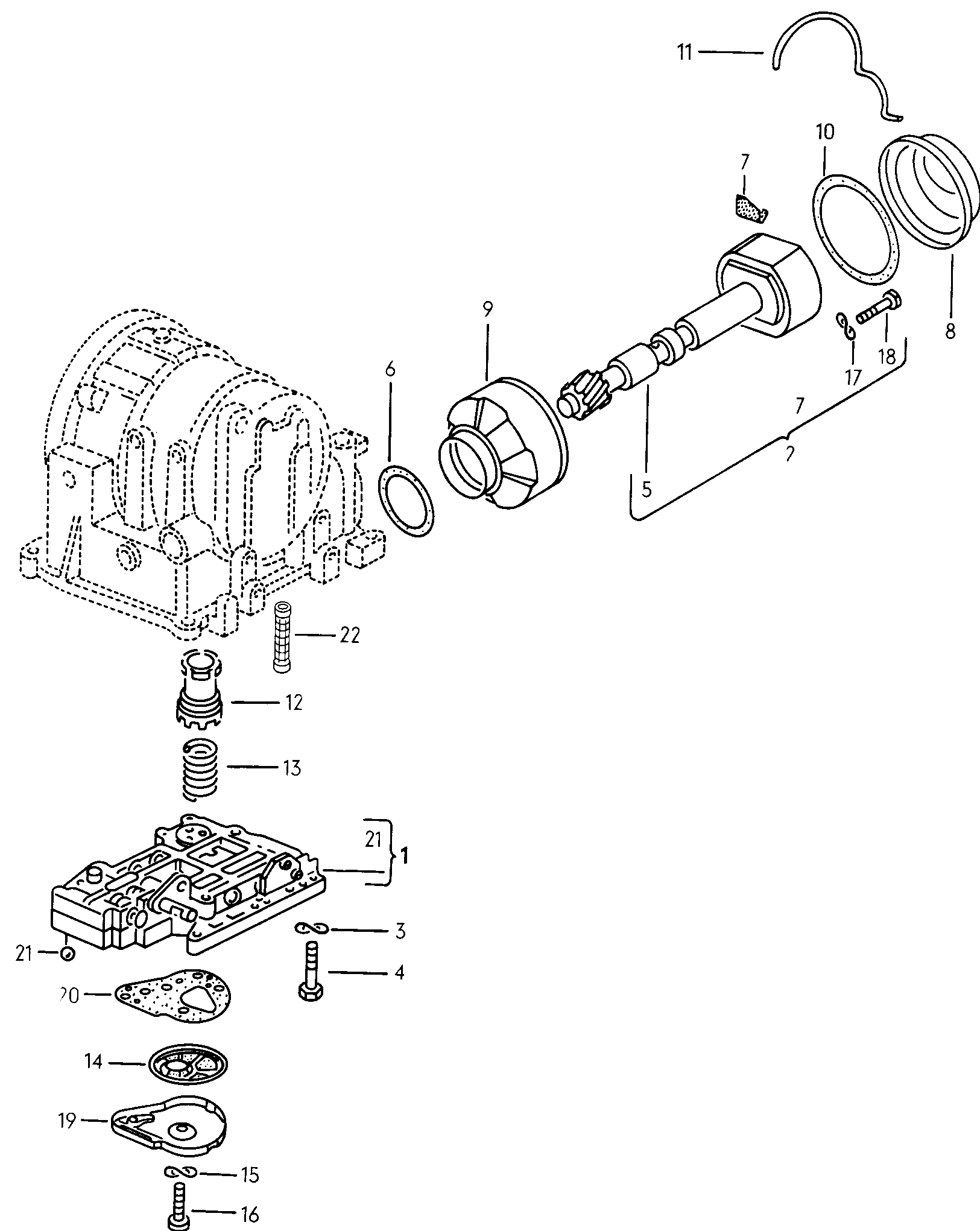

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	valve bodyoil strainerfor automatic gearbox EQ,EV EV	—
-	Gasket set for oil strainer	010 398 009
-	Manual slide valve	003 325 287
(1)	valve body without governor also use: 003 325 287 003 325 287	010 325 032 B
(1)	No longer available	—
10	O-ring 90 X 4,2 90 X 4,2	010 325 381 A
11	No longer available	—
11	angled bracket	010 325 385
12	piston for accumulator	003 325 405 F
13	Pressure spring	003 325 417
14	oil strainer	010 325 421 A
15	Spring washer 5 5	N 012 225 3
16	fillister hd. bolt M 5 X 15 M 5 X 15	N 014 131 3
17	Spring washer 5 5	N 012 225 3
18	fillister hd. bolt 5 X 40 X 25 5 X 40 X 25	N 014 153 1
19	cover for oil strainer	010 325 429 A
2	governor	010 325 041
2	No longer available	—
20	gasket for oil strainer	010 325 443
21	ball 3 3	N 025 652 2
3	Spring washer 6 6	N 012 226 5
4	Hexagon bolt M 6 X 30 M 6 X 30	N 010 346 7
5	No longer available	—
5	Regulator shaft	010 325 305 D
6	O-ring 58,6 X 3 58,6 X 3	021 105 279
7	No longer available	—
8	Cover	010 325 373 A
8	No longer available	—
9	housing	010 325 379 A
9	No longer available	—
