Final drive complete axle drive housingfor 3 speed — Mk1 Golf EV 8V GTI (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - For manual gearbox. Differential

Generation: Mk1 1982 - 1983 (RDW) Group: Gearbox Rebuild step 9 Parts: 70 Primary OEM: 010 409 505, 010 409 604 B, 010 409 051

Final drive complete axle drive housingfor 3 speed for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 101000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 69 OEM part numbers across 70 catalogued positions including 010 409 505, 010 409 604 B and 010 409 051. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 69 OEM part numbers across 70 numbered positions.

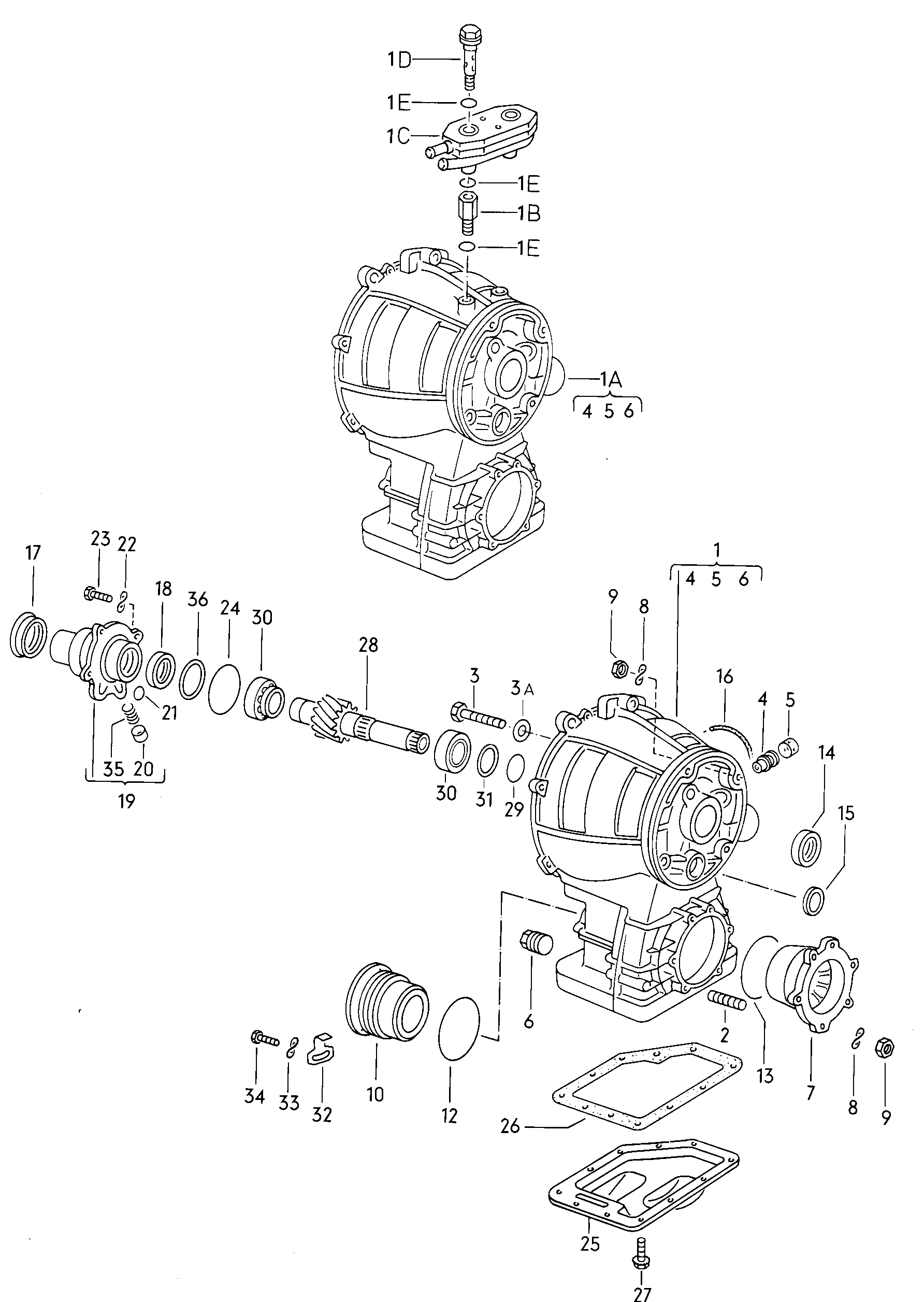

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
final drive, complete Axle drive housingfor 3-speed automatic gearbox EQ,EV,TB,TC,TE,TF,TFA,TG,TK
EV
—
-
final drive, complete TB,TC,TE,TG
 010 409 505 B
-
final drive, complete TK
 010 409 505 H
-
final drive, complete TK
 010 409 505 HX
-
final drive, complete TF,TFA
 010 409 505 F
-
final drive, complete EQ,EV
EV
010 409 505
(1)
Axle drive housing G 01 08 3>> TK
 010 409 051 C
(25)
Cover G 01 08 3>>
 010 409 581 D
(28)
Output shaft TF,TFA
 010 409 604 C
(28)
Output shaft Z=22 TK
Z=22
 010 409 604 E
(28)
Output shaft EQ,EV
EV
010 409 604 B
(31)
adjusting washer 1,2
1,2
 010 323 346 A
(36)
adjusting washer 1,75
1,75
 010 519 141 AR
(36)
adjusting washer 1,85
1,85
 010 519 141 AT
(36)
adjusting washer 1,9
1,9
 010 519 141 BA
(36)
adjusting washer 1,95
1,95
 010 519 141 BB
(36)
adjusting washer 2
2
 010 519 141 BC
(36)
adjusting washer 2,05
2,05
 010 519 141 BD
(36)
adjusting washer 2,1
2,1
 010 519 141 BE
(36)
adjusting washer 2,15
2,15
 010 519 141 BF
(36)
adjusting washer 1,8
1,8
 010 519 141 AS
(36)
adjusting washer 1,2
1,2
 010 519 141 AE
(36)
adjusting washer 1,25
1,25
 010 519 141 AF
(36)
adjusting washer 1,3
1,3
 010 519 141 AG
(36)
adjusting washer 1,35
1,35
 010 519 141 AH
(36)
adjusting washer 1,4
1,4
 010 519 141 AJ
(36)
adjusting washer 1,45
1,45
 010 519 141 AK
(36)
adjusting washer 1,5
1,5
 010 519 141 AL
(36)
adjusting washer 1,55
1,55
 010 519 141 AM
(36)
adjusting washer 1,6
1,6
 010 519 141 AN
(36)
adjusting washer 1,65
1,65
 010 519 141 AP
(36)
adjusting washer 1,7
1,7
 010 519 141 AQ
(36)
adjusting washer 2,2
2,2
 010 519 141 BG
1
Axle drive housing G 17 09 2>>G >> 31 07 3 TE,TGEQ,EV,TB,TC,TF,TFA
EV
010 409 051
10
bearing ring
 010 409 253 A
12
O-ring 78 X 3
78 X 3
 010 409 259 A
13
O-ring
 010 409 528
14
radial shaft seal 38 X 52 X 7
38 X 52 X 7
 010 409 529 C
15
O-ring
 010 409 530
16
tensioning strap 200 X 205 X 3,5
200 X 205 X 3,5
 010 409 549 B
17
radial shaft seal 42 X 60 X 19
42 X 60 X 19
 010 409 568
18
radial shaft seal 42 X 30 X 7
42 X 30 X 7
 010 409 085 E
19
bearing tube
 010 409 573
2
Threaded pin M 8 X 36
M 8 X 36
 N 014 617 4
20
End cap
 003 321 257 A
21
O-ring 16 X 2,5
16 X 2,5
 010 409 563 A
22
Spring washer 8
8
 N 012 228 3
23
Hexagon bolt M 8 X 20
M 8 X 20
 N 010 240 16
24
O-ring
 010 409 580
25
Cover G >> 31 07 3
 010 409 581
26
Seal
 010 409 597 A
27
Hex collared bolt M 8 X 18
M 8 X 18
 N 900 639 02
28
Output shaft TB,TC,TE,TG
 010 409 604 A
29
O-ring
 010 409 637 A
3
Hexagon bolt M 12 X 58
M 12 X 58
 N 040 338 1
30
Taper roller bearing 59 MM
59 MM
 211 405 625
31
adjusting washer 0,4
0,4
 010 323 345 A
32
Retaining plate
 010 409 668
33
Spring washer 6
6
 N 012 226 5
34
Hexagon bolt M 6 X 12
M 6 X 12
 N 010 212 26
34
Hexagon bolt M 6 X 12
M 6 X 12
 N 010 212 14
35
Pressure spring
 010 409 713 A
36
adjusting washer 1,15
1,15
 010 519 141 AD
3A
Washer 13 X 24 X 2,5
13 X 24 X 2,5
 N 011 531 7
4
Breather line
 003 507 141 C
5
Cover
 003 507 145
6
sealing plug M 24 X 1,5
M 24 X 1,5
 012 301 127 F
7
Cover
 010 409 117 A
8
Spring washer 8
8
 N 012 228 3
9
Hexagon nut M 8
M 8
 N 011 008 22

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these ev 8v gti diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1982 - 1983
Generation region
RDW
Generation code
007
Engine codes on this plate
EV
Variant tags
petrol_8v_gti
Factory group
02 Gearbox
Factory subgroup
101000

Related factory diagrams

Other published ev 8v gti plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the final drive complete axle drive housingfor 3 speed diagram for the Mk1 Golf?
This diagram lists 69 OEM part numbers for the Mk1 Golf. The first three are 010 409 505, 010 409 604 B and 010 409 051.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The parts on it carry the engine code EV.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
