Planetary gears w regulator turbine shaft gear housing — Mk1 Golf EV 8V GTI (1981)

Factory title: Volkswagen Golf (1981) - Gear housing. Planetary gears w. regulator and turbine shaft

Generation: Mk1 1981 (RDW) Group: Gearbox Rebuild step 9 Parts: 75 Primary OEM: 010 321 021 AX, 010 321 173 E, 010 323 161 A

Planetary gears w regulator turbine shaft gear housing for the Volkswagen Golf Mk1 (1981): factory exploded diagram 85000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 73 OEM part numbers across 75 catalogued positions including 010 321 021 AX, 010 321 173 E and 010 323 161 A. Parts on this plate carry the engine code EV. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 73 OEM part numbers across 75 numbered positions.

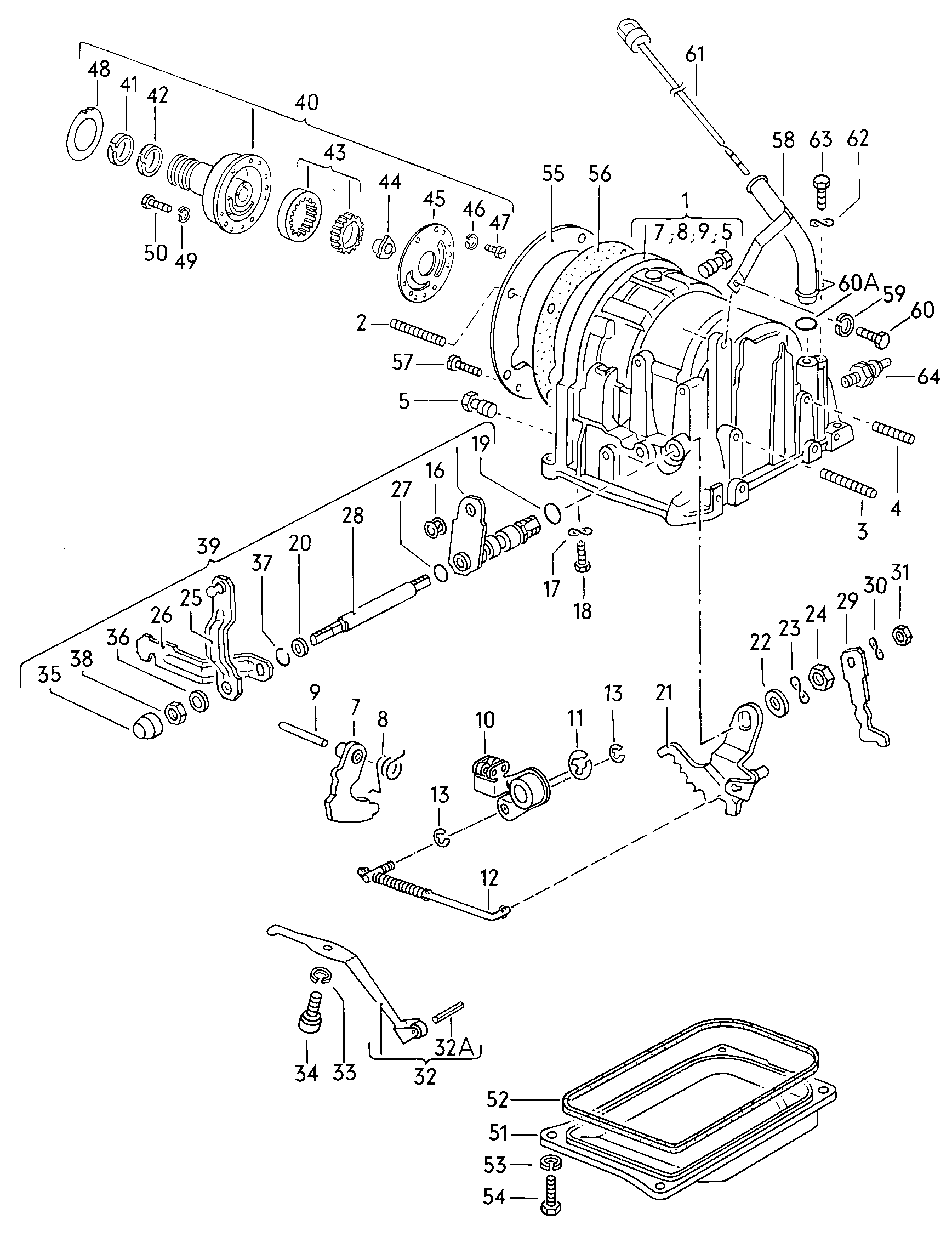

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Planetary gears w. regulatorand turbine shaft automatic EQ,EV
automatic
EV
—
Gear housing automatic EQ,EV,TB
automatic
EV
—
-
Planetary gears w. regulatorand turbine shaft EQ,EV
EV
010 321 021 AX
-
lever for cable
 010 321 173 E
-
thrust washer 58
58
 010 323 161 A
(60A)
O-ring 17,5 X 3,5
17,5 X 3,5
 003 321 419 A
1
Gear housing
 010 321 101 G
10
engaging lever forparking lock
 010 321 135
11
Retaining washer 9
9
 N 012 438 2
11
Retaining washer 9
9
 N 012 438 2
12
Actuating rodwith pressure spring
 010 321 153
13
Retaining washer 6
6
 N 012 436 2
16
bush for lever
 003 321 177
17
Spring washer 6
6
 N 012 226 5
18
Hexagon bolt M 6 X 13,5
M 6 X 13,5
 N 010 224 1
19
O-ring 14 X 2,5
14 X 2,5
 N 028 201 2
2
Threaded pin M 8 X 70
M 8 X 70
 N 900 028 02
20
support washer
 010 321 180 B
21
locking segment
 010 321 191 A
22
Washer 16 X 28 X 2
16 X 28 X 2
 N 900 477 01
23
Spring washer 16
16
 N 012 238 5
24
Hexagon nut M 16 X 1,5
M 16 X 1,5
 N 011 164 2
24
Hexagon nut M 16 X 1,5
M 16 X 1,5
 N 011 164 15
25
lever for bowden cable
 010 321 201 G
26
lever for accelerator cable
 010 321 205 E
27
O-ring 8,3 X 2,4
8,3 X 2,4
 010 321 182
28
shaft for accelerator cable
 010 321 209 C
29
lever
 010 321 215 E
3
Threaded pin M 10 X 52
M 10 X 52
 N 014 692 1
30
Spring washer 8
8
 N 012 228 3
31
Hexagon nut M 8
M 8
 N 011 008 8
32
leaf spring
 010 321 221
32A
Spring pin 3 X 14
3 X 14
 N 013 325 1
33
spring ring 8
8
 N 012 038 7
33
spring ring 8
8
 N 012 038 8
34
Socket head bolt withhexagon socket head M 8 X 18
M 8 X 18
 N 014 712 3
35
dust cap
 010 321 227
36
Shim
 010 321 229
37
Securing ring 10 X 1
10 X 1
 N 023 641 1
38
Hexagon nut M 10 X 1
M 10 X 1
 N 011 137 1
39
lever for accelerator cable,cables
 010 398 201
4
Threaded pin M 10 X 33
M 10 X 33
 N 014 517 1
40
oil pump also use: 010 323 161 A
010 323 161 A
 010 321 241 F
41
piston ring foroil pump
 003 321 261
42
piston ring foroil pump
 010 321 261
43
gear set
 003 321 263
44
drive for oil pump
 003 321 273
45
plate for oil pump
 010 321 279
46
spring ring 4
4
 N 012 004 3
47
fillister hd. bolt M 4 X 6
M 4 X 6
 N 014 121 2
48
thrust washer 58
58
 010 323 161 A
49
spring ring 6
6
 N 012 006 4
5
sealing plug M 10 X 1
M 10 X 1
 003 507 133 A
50
Hexagon bolt M 6 X 35
M 6 X 35
 N 010 347 3
50
Hexagon bolt M 6 X 35
M 6 X 35
 N 010 221 3
51
Transmission oil sump
 010 321 361 F
52
gasket for oil sump
 010 321 371 B
53
spring ring 8
8
 N 012 038 7
54
Hexagon bolt M 8 X 20
M 8 X 20
 N 010 240 16
55
Intermediate plate
 010 321 383 B
56
Seal
 010 321 385 B
57
Socket head bolt M 5 X 15
M 5 X 15
 N 010 702 1
58
oil filler pipe
 010 321 405 A
59
spring ring 10
10
 N 012 011 3
60
Hexagon bolt M 10 X 22
M 10 X 22
 N 010 253 7
60A
O-ring 17,5 X 3,5
17,5 X 3,5
 003 321 419 B
60A
O-ring 17,5 X 3,5
17,5 X 3,5
 003 321 419
61
Oil dipstickmarked green 350 MM
350 MM
 010 321 431 H
62
Spring washer 6
6
 N 012 226 5
63
Hexagon bolt M 6 X 12
M 6 X 12
 N 010 212 26
63
Hexagon bolt M 6 X 12
M 6 X 12
 N 010 212 14
64
Oil pressure switchfor models with consumptionindicator
 171 919 829 A
7
lever for parking lock
 010 321 117 B
8
torsion spring
 010 321 121 A
9
pin - engagement lever
 010 321 123
